R5F21336CDFP#V2 - Renesas Electronics

Description: The R8C/33C Group is supported only for customers who have already adopted these products.The R8C/33C Group of single-chip MCUs incorporates the R8C CPU core, employing sophisticated instructions for a high level of efficiency. With 1Mb of address space, and it is capable of executing instructions at high speed. In addition, the CPU core boasts a multiplier for high-speed operation processing.Power consumption is low, and the supported operating modes allow additional power control. These MCUs are designed

Download R5F21336CDFP#V2 Model

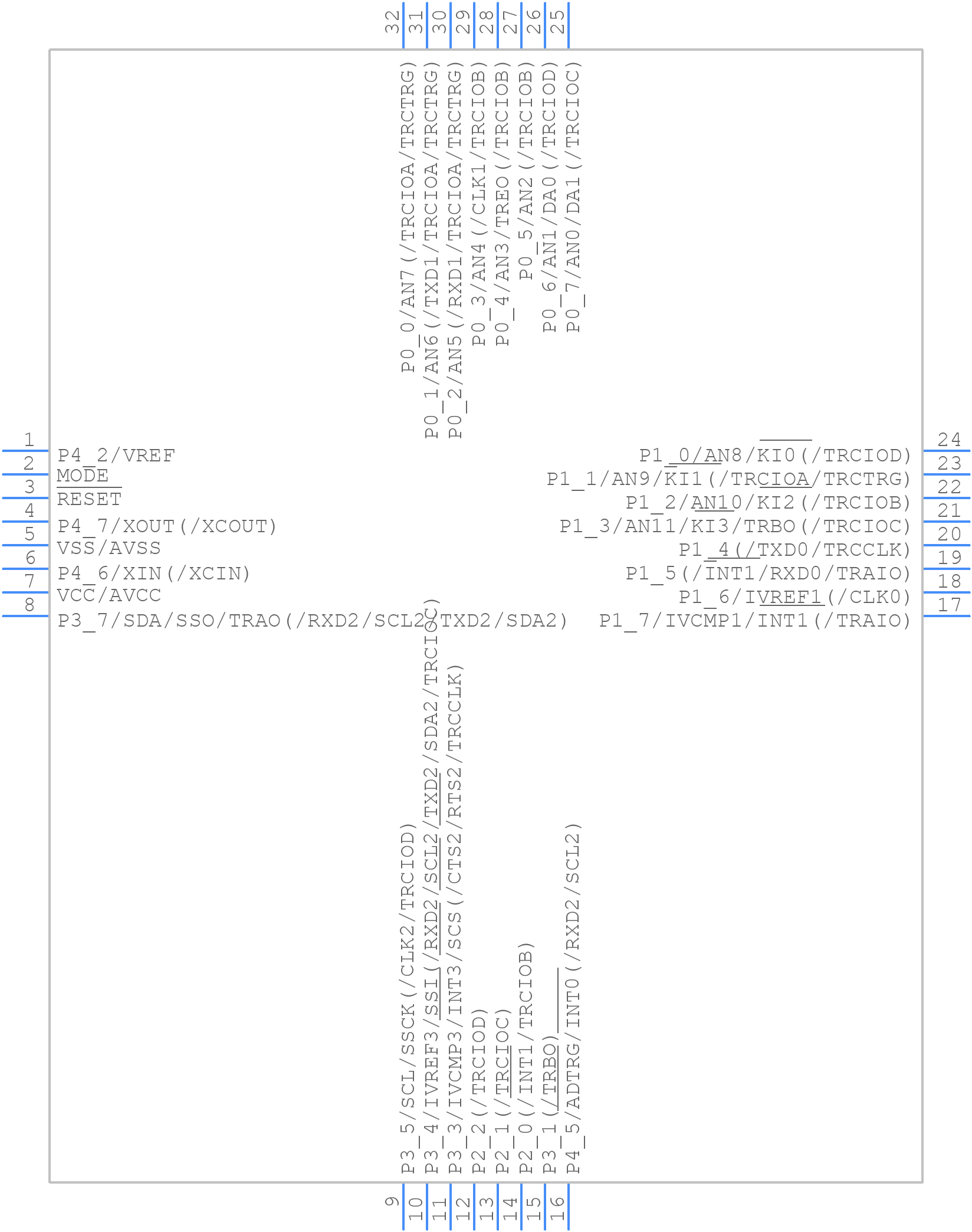

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
R5F21336CDFP#V2 - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - P-LQFP32-7x7-0.80
click to zoom
3D Models
R5F21336CDFP#V2 - Renesas Electronics  - 3D model - Quad Flat Packages - P-LQFP32-7x7-0.80
click to zoom

R5F21336CDFP#V2 Details

  • Manufacturer Part Number:

    R5F21336CDFP#V2

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    LQFP

  • Pin Count:

    32

  • Manufacturer Package Code:

    PLQP0032GB

  • HTS Code:

    8542.31.00.20

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Bit Size:

    16

  • CPU Family:

    R8C

  • JESD-30 Code:

    S-PQFP-G32

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QFP

  • Package Equivalence Code:

    QFP32,.35SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    2560

  • ROM (words):

    32768

  • ROM Programmability:

    FLASH

  • Speed:

    20 MHz

  • Supply Current-Max:

    15 mA

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

R5F21336CDFP#V2 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for R5F21336CDFP#V2 is 2.7V to 5.5V.
  • The clock settings for R5F21336CDFP#V2 can be configured using the Clock Control Register (CCR) and the Clock Enable Register (CER). Refer to the datasheet for specific register addresses and bit settings.
  • The maximum operating frequency of R5F21336CDFP#V2 is 32 MHz.
  • The ADC on R5F21336CDFP#V2 can be used by configuring the ADC Control Register (ADCCR) and the ADC Data Register (ADCDR). Refer to the datasheet for specific register addresses and bit settings.
  • The power consumption of R5F21336CDFP#V2 in sleep mode is typically around 1.5 μA.
