R5F21344CDFP#30 - Renesas Electronics

Description: The R8C/34C Group is supported only for customers who have already adopted these products. The RL78/G1F Group is recommended for new designs.The R8C/34C Group of single-chip MCUs incorporates the R8C CPU core, employing sophisticated instructions for a high level of efficiency. With 1Mb of address space, and it is capable of executing instructions at high speed. In addition, the CPU core boasts a multiplier for high-speed operation processing.Power consumption is low, and the supported operating modes allow

Download R5F21344CDFP#30 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

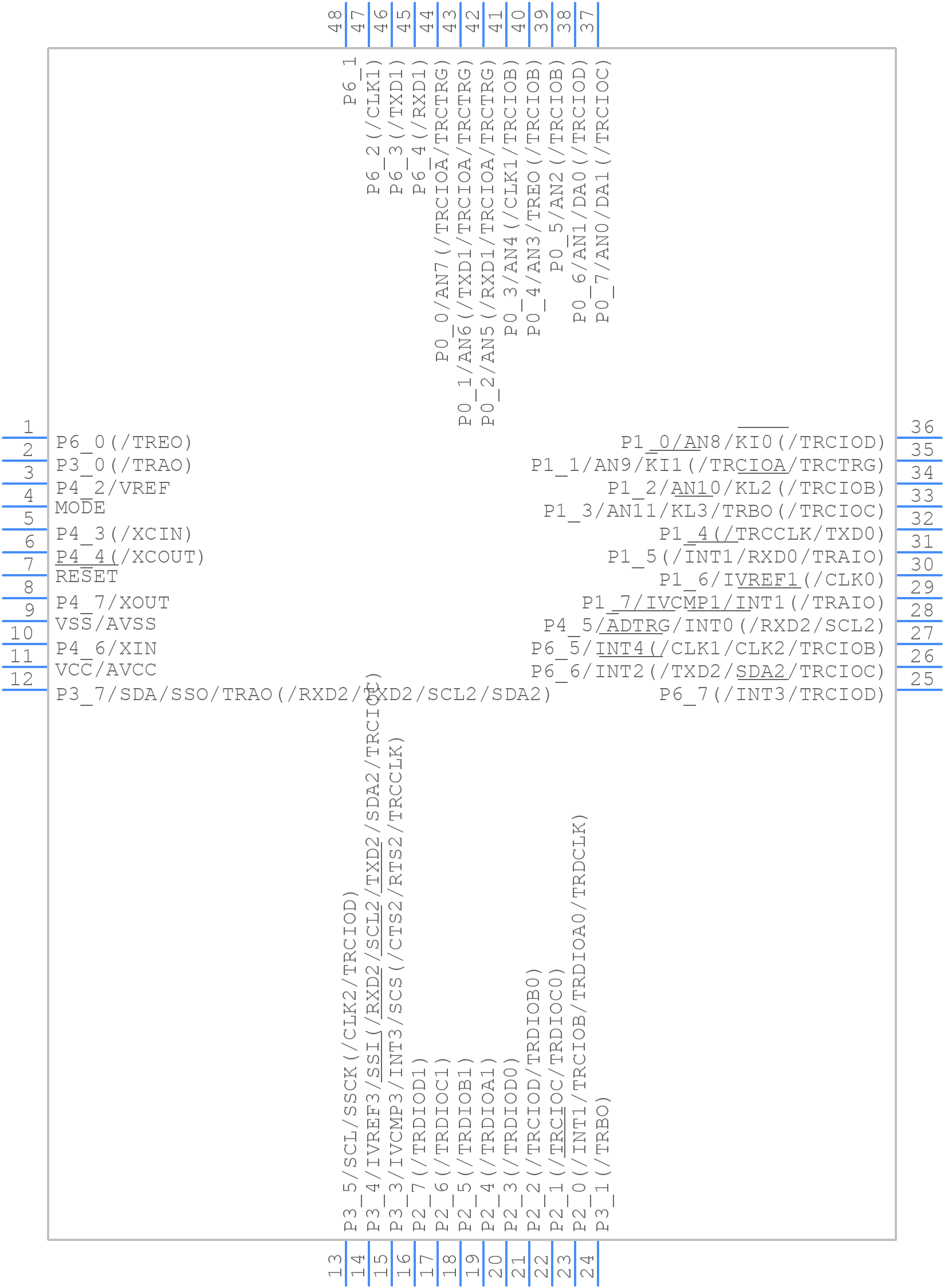

R5F21344CDFP#30 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
R5F21344CDFP#30 - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - 48-LFQFP (7x7)
click to zoom
3D Models
R5F21344CDFP#30 - Renesas Electronics - 3D model - Quad Flat Packages - 48-LFQFP (7x7)
click to zoom

R5F21344CDFP#30 Details

  • Manufacturer Part Number:

    R5F21344CDFP#30

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    LQFP

  • Pin Count:

    48

  • Manufacturer Package Code:

    PLQP0048KB

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

R5F21344CDFP#30 Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VCC first, followed by VDD, and then the clock signal. This ensures that the internal voltage regulators and clock circuits are properly initialized.
  • The clock settings can be configured through the Clock Control Register (CCR) and the Clock Frequency Register (CFR). The CCR sets the clock source and mode, while the CFR sets the clock frequency. Refer to the user manual for specific register settings and values.
  • The maximum operating temperature range for the R5F21344CDFP#30 is -40°C to +125°C. However, it's recommended to operate the device within the industrial temperature range of -40°C to +85°C for optimal performance and reliability.
  • The R5F21344CDFP#30 has a built-in watchdog timer (WDT) that can be enabled and configured through the Watchdog Timer Control Register (WTCSR). The WDT can be set to reset the device or generate an interrupt upon timeout. Refer to the user manual for specific register settings and values.
  • The maximum current consumption of the R5F21344CDFP#30 depends on the operating frequency, voltage, and mode. According to the datasheet, the maximum current consumption is approximately 350 mA at 100 MHz and 3.3 V. However, this value can vary depending on the specific application and usage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

R5F21344CDFP#30 Overview

Use the download button to access the R5F21344CDFP#30 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like R5F21, or try a keyword search, such as Microcontrollers
