R5F21346UDFP#V0 - Renesas Electronics

Description: The R8C/34U Group is supported only for the customers who have already adopted these products. For new adoption, please consider other products such as RL78/G1C, RL78/L1C Group.The R8C/34P Group, R8C/34R Group of single-chip MCUs incorporates the R8C CPU core, employing sophisticated instructions for a high level of efficiency. With 1Mb of address space, and it is capable of executing instructions at high speed. In addition, the CPU core boasts a multiplier for high-speed operation processing.Power consumpt

Download R5F21346UDFP#V0 Model

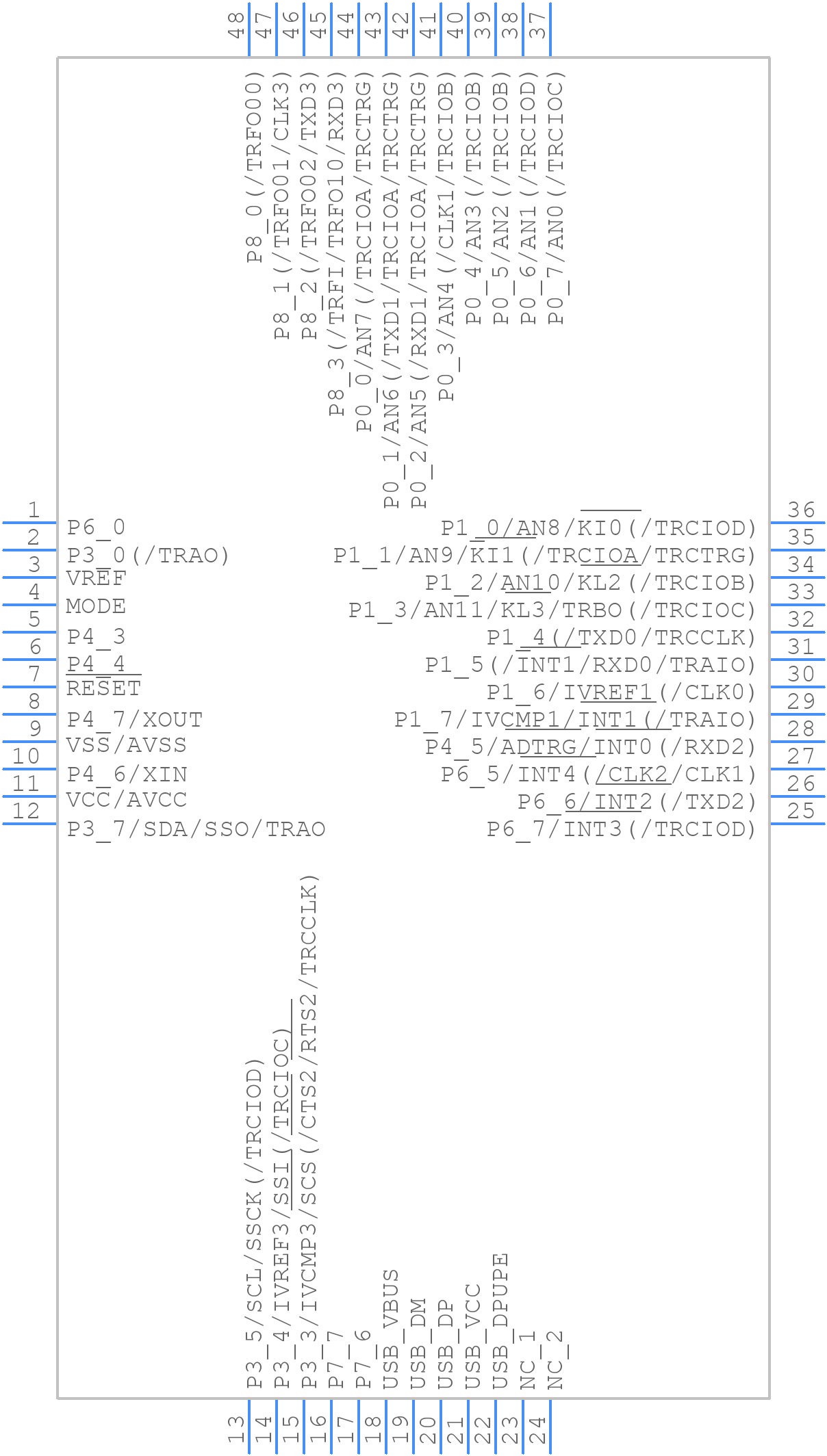

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
R5F21346UDFP#V0 - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - PLQP0048KB-A
click to zoom
3D Models
R5F21346UDFP#V0 - Renesas Electronics  - 3D model - Quad Flat Packages - PLQP0048KB-A
click to zoom

R5F21346UDFP#V0 Details

  • Manufacturer Part Number:

    R5F21346UDFP#V0

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    LQFP

  • Pin Count:

    48

  • Manufacturer Package Code:

    PLQP0048KB

  • HTS Code:

    8542.31.00.20

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Has ADC:

    YES

  • Bit Size:

    16

  • Clock Frequency-Max:

    20 MHz

  • DMA Channels:

    NO

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    36

  • Number of Terminals:

    48

  • PWM Channels:

    YES

  • Package Code:

    QFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK

  • Speed:

    20 MHz

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

R5F21346UDFP#V0 Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VCC first, followed by VDD, and then the clock signal. This ensures proper initialization of the device.
  • The clock settings can be configured through the Clock Control Register (CCR) and the Clock Source Select Register (CSSR). Refer to the user manual for specific register settings and values.
  • The maximum operating frequency of the R5F21346UDFP#V0 is 32 MHz, but it can be overclocked to 40 MHz with proper thermal management and voltage regulation.
  • The watchdog timer can be implemented using the Watchdog Timer Register (WDT) and the Watchdog Timer Control Register (WDTC). Set the watchdog timer period and enable the watchdog timer by writing to the WDT and WDTC registers.
  • The VBAT pin is used to connect a battery or a supercapacitor to provide power to the real-time clock (RTC) and the backup registers during power-down mode.
