R5F2134CKNFP#V0 - Renesas Electronics

Description: The R8C/34K Group is supported only for the customers who have already adopted these products. For new adoption, please consider other products such as RL78/G1C Group.The R8C/34E Group, R8C/34F Group, R8C/34G Group, and R8C/34H Group of single-chip MCUs incorporate the R8C/Tiny Series CPU core, employing sophisticated instructions for a high level of efficiency. With 1Mb of address space, and it is capable of executing instructions at high speed. In addition, the CPU core boasts a multiplier for high-speed

Download R5F2134CKNFP#V0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

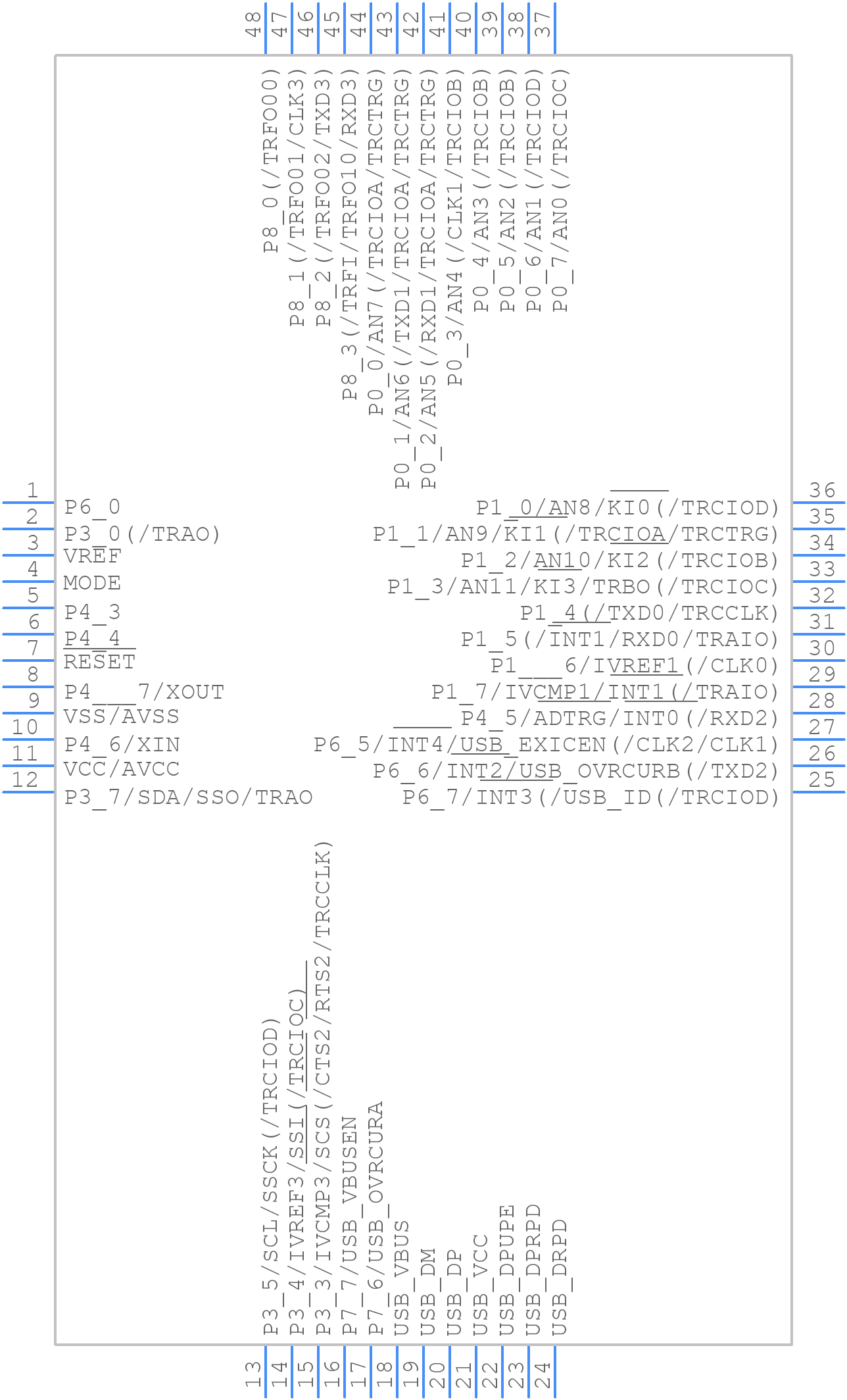

R5F2134CKNFP#V0 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
R5F2134CKNFP#V0 - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - PLQP0048K
click to zoom
3D Models
R5F2134CKNFP#V0 - Renesas Electronics - 3D model - Quad Flat Packages - PLQP0048K
click to zoom

R5F2134CKNFP#V0 Details

  • Manufacturer Part Number:

    R5F2134CKNFP#V0

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    LQFP

  • Package Description:

    7 X 7 MM, 0.50 MM PITCH, PLASTIC, LQFP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    PLQP0048KB

  • HTS Code:

    8542.31.00.20

  • Factory Lead Time:

    52 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Has ADC:

    YES

  • Additional Feature:

    IT ALSO OPERATES IN 1.8V AT 5MHZ

  • Bit Size:

    16

  • Clock Frequency-Max:

    20 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    NO

  • JESD-30 Code:

    S-PQFP-G48

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    36

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.7 mm

  • Speed:

    20 MHz

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

R5F2134CKNFP#V0 Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VCC first, followed by VDD, and then the clock signal. This ensures proper initialization of the internal voltage regulators and prevents latch-up.
  • The clock settings can be configured using the Clock Control Register (CCR). The CCR allows you to select the clock source, divide the clock frequency, and enable or disable the clock output. Refer to the user manual for detailed instructions.
  • The maximum operating temperature range for the R5F2134CKNFP#V0 is -40°C to +85°C. However, it's recommended to operate the device within the temperature range of -20°C to +70°C for optimal performance and reliability.
  • The R5F2134CKNFP#V0 has a built-in watchdog timer that can be enabled and configured using the Watchdog Timer Control Register (WTCR). The watchdog timer can be used to reset the device in case of a software or hardware failure.
  • The maximum current consumption of the R5F2134CKNFP#V0 depends on the operating frequency, voltage, and peripherals used. Refer to the datasheet for the typical current consumption values under different operating conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

R5F2134CKNFP#V0 Overview

Use the download button to access the R5F2134CKNFP#V0 schematic symbol, PCB footprint, and 3D model.
