R5F21357CDFP#30 - Renesas Electronics

Description: The R8C/35C Group is supported only for customers who have already adopted these products. The RL78/G14, RL78/G1F Groups are recommended for new designs.The R8C/35C Group of single-chip MCUs incorporates the R8C CPU core, employing sophisticated instructions for a high level of efficiency. With 1Mb of address space, and it is capable of executing instructions at high speed. In addition, the CPU core boasts a multiplier for high-speed operation processing.Power consumption is low, and the supported operating

Download R5F21357CDFP#30 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
R5F21357CDFP#30 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

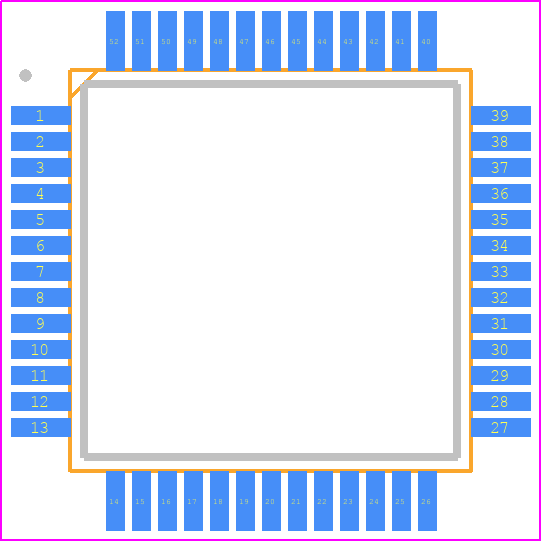

R5F21357CDFP#30 - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - PLQP0052JA-A
click to zoom
3D Models
R5F21357CDFP#30 - Renesas Electronics - 3D model - Quad Flat Packages - PLQP0052JA-A
click to zoom

R5F21357CDFP#30 Details

  • Manufacturer Part Number:

    R5F21357CDFP#30

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    LQFP

  • Pin Count:

    52

  • Manufacturer Package Code:

    PLQP0052JA

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Moisture Sensitivity Level:

    3

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

R5F21357CDFP#30 Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VCC first, followed by VDD, and then the clock signal. This ensures that the internal voltage regulators and clock circuits are properly initialized.
  • The clock settings can be configured using the Clock Control Register (CCR) and the Clock Source Select Register (CSSR). Refer to the user manual for specific register settings and clock configuration options.
  • The maximum operating temperature range for the R5F21357CDFP#30 is -40°C to +125°C. However, it's recommended to operate the device within the industrial temperature range of -40°C to +85°C for optimal performance and reliability.
  • The R5F21357CDFP#30 has a built-in watchdog timer (WDT) that can be enabled and configured using the Watchdog Timer Control Register (WTCR). The WDT can be used to reset the device in case of a software or hardware fault.
  • The maximum current consumption of the R5F21357CDFP#30 depends on the operating frequency, voltage, and peripheral usage. Refer to the datasheet for specific current consumption values under different operating conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

R5F21357CDFP#30 Overview

Use the download button to access the R5F21357CDFP#30 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like R5F21, or try a keyword search, such as Microcontrollers
