R5F2135CCDFP#30 - Renesas Electronics

Description: The R8C/35C Group is supported only for customers who have already adopted these products. The RL78/G14, RL78/G1F Groups are recommended for new designs.The R8C/35C Group of single-chip MCUs incorporates the R8C CPU core, employing sophisticated instructions for a high level of efficiency. With 1Mb of address space, and it is capable of executing instructions at high speed. In addition, the CPU core boasts a multiplier for high-speed operation processing.Power consumption is low, and the supported operating

Download R5F2135CCDFP#30 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
R5F2135CCDFP#30 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

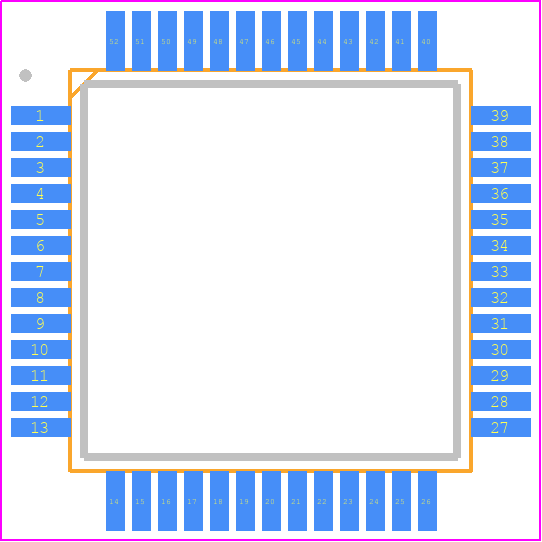

R5F2135CCDFP#30 - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - PLQP0052JA-A
click to zoom
3D Models
R5F2135CCDFP#30 - Renesas Electronics - 3D model - Quad Flat Packages - PLQP0052JA-A
click to zoom

R5F2135CCDFP#30 Details

  • Manufacturer Part Number:

    R5F2135CCDFP#30

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    LQFP

  • Pin Count:

    52

  • Manufacturer Package Code:

    PLQP0052JA

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Moisture Sensitivity Level:

    3

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

R5F2135CCDFP#30 Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VCC first, followed by VSS, and then the clock signal. This ensures proper initialization of the internal voltage regulator and prevents latch-up.
  • The watchdog timer is enabled by default after a power-on reset. To prevent unwanted resets, it is recommended to disable the watchdog timer or refresh it within the specified time window after power-on reset.
  • The maximum allowed capacitance for the VCC pin is 10uF. Exceeding this value may cause voltage regulator instability or affect the power-on reset timing.
  • To optimize flash memory programming time, use the high-speed programming mode, ensure the clock frequency is set to the maximum allowed value, and use the bulk erase command to erase large blocks of memory.
  • The recommended oscillator circuit configuration is a series resistor and capacitor (R-C) circuit with a 1kΩ resistor and a 10pF capacitor. This ensures stable oscillator operation and minimizes jitter.
