R5F2M110ADSP#W4 - Renesas Electronics

Description: The R8C/M12A Group is supported only for customers who have already adopted these products. The RL78/G12, RL78/G11 Groups are recommended for new designs.The R8C/LA3A Group, R8C/LA5A Group, R8C/LA6A Group, and R8C/LA8A Group of single-chip MCUs incorporate the R8C CPU core, which implements a powerful instruction set for a high level of efficiency and supports a 1Mb address space, allowing execution of instructions at high speed. In addition, the CPU core integrates a multiplier for high-speed operation pro

Download R5F2M110ADSP#W4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

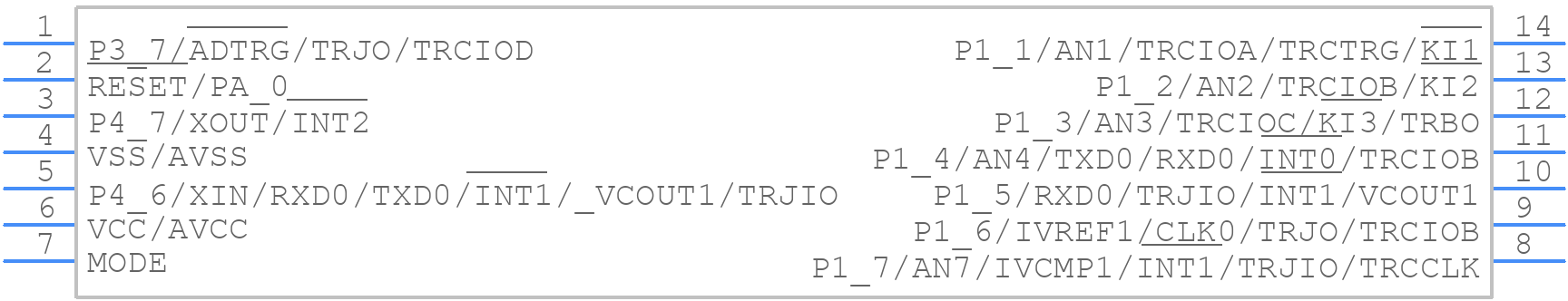

R5F2M110ADSP#W4 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
R5F2M110ADSP#W4 - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PTSP0014JA-B
click to zoom
3D Models
R5F2M110ADSP#W4 - Renesas Electronics - 3D model - Small Outline Packages - PTSP0014JA-B
click to zoom

R5F2M110ADSP#W4 Details

  • Manufacturer Part Number:

    R5F2M110ADSP#W4

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Pin Count:

    14

  • Manufacturer Package Code:

    PTSP0014JA

  • HTS Code:

    8542.31.00.20

  • Factory Lead Time:

    52 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Has ADC:

    YES

  • Bit Size:

    16

  • Clock Frequency-Max:

    20 MHz

  • DMA Channels:

    NO

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of I/O Lines:

    11

  • Number of Terminals:

    14

  • PWM Channels:

    YES

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Speed:

    20 MHz

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

R5F2M110ADSP#W4 Frequently Asked Questions (FAQs)

  • The recommended oscillator frequency for the R5F2M110ADSP#W4 is 32.768 kHz for the low-speed oscillator and 12 MHz for the high-speed oscillator.
  • The pin multiplexing for the R5F2M110ADSP#W4 can be configured using the PMR (Pin Multiplexing Register) and the PFR (Pin Function Register) registers. Refer to the user manual for specific register settings and pin configurations.
  • The maximum operating temperature range for the R5F2M110ADSP#W4 is -40°C to +85°C.
  • The R5F2M110ADSP#W4 has a built-in watchdog timer that can be enabled and configured using the WDT (Watchdog Timer) register. The watchdog timer can be set to reset the microcontroller if it does not receive a refresh signal within a specified time period.
  • The maximum current consumption of the R5F2M110ADSP#W4 is approximately 350 mA at 5V and 25°C, depending on the operating mode and clock frequency.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

R5F2M110ADSP#W4 Overview

Use the download button to access the R5F2M110ADSP#W4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like R5F2M, or try a keyword search, such as Microcontrollers
