R5F2M120ANDD#U0 - Renesas Electronics

Description: The R8C/M13B Group is supported only for customers who have already adopted these products. The RL78/G1F, RL78/G1G Groups are recommended for new designs.The R8C/M11A Group and R8C/M12A Group of single-chip microcontrollers (MCUs) incorporate the R8C CPU core, which provides sophisticated instructions for a high level of efficiency. With 1Mb of address space, the CPU core is capable of executing instructions at high speed. In addition, it features a multiplier for high-speed arithmetic processing.Power cons

Download R5F2M120ANDD#U0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

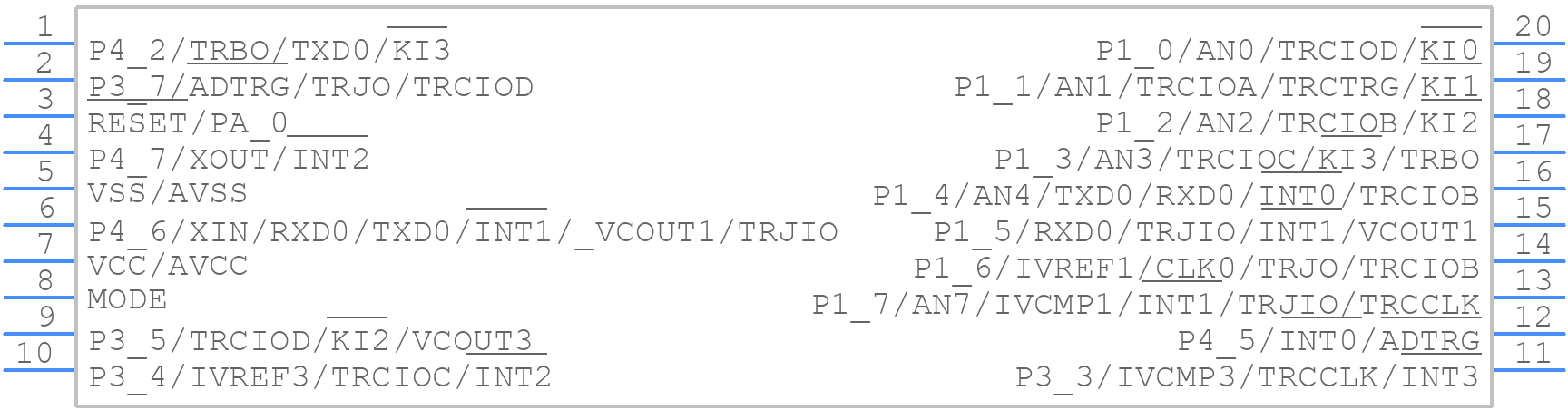

R5F2M120ANDD#U0 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
R5F2M120ANDD#U0 - Renesas Electronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - R5F2M120ANDD#U0
click to zoom
3D Models
R5F2M120ANDD#U0 - Renesas Electronics - 3D model - Dual-In-Line Packages - R5F2M120ANDD#U0
click to zoom

R5F2M120ANDD#U0 Details

  • Manufacturer Part Number:

    R5F2M120ANDD#U0

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Pin Count:

    20

  • Manufacturer Package Code:

    PRDP0020AD

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

R5F2M120ANDD#U0 Overview

Use the download button to access the R5F2M120ANDD#U0 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like R5F2M, or try a keyword search, such as Microcontrollers
