R5F3650EDFA#U0 - Renesas Electronics

Description: The M16C/65 Group is supported only for customers who have already adopted these products. The RX651 Group is recommended for new designs.

Download R5F3650EDFA#U0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

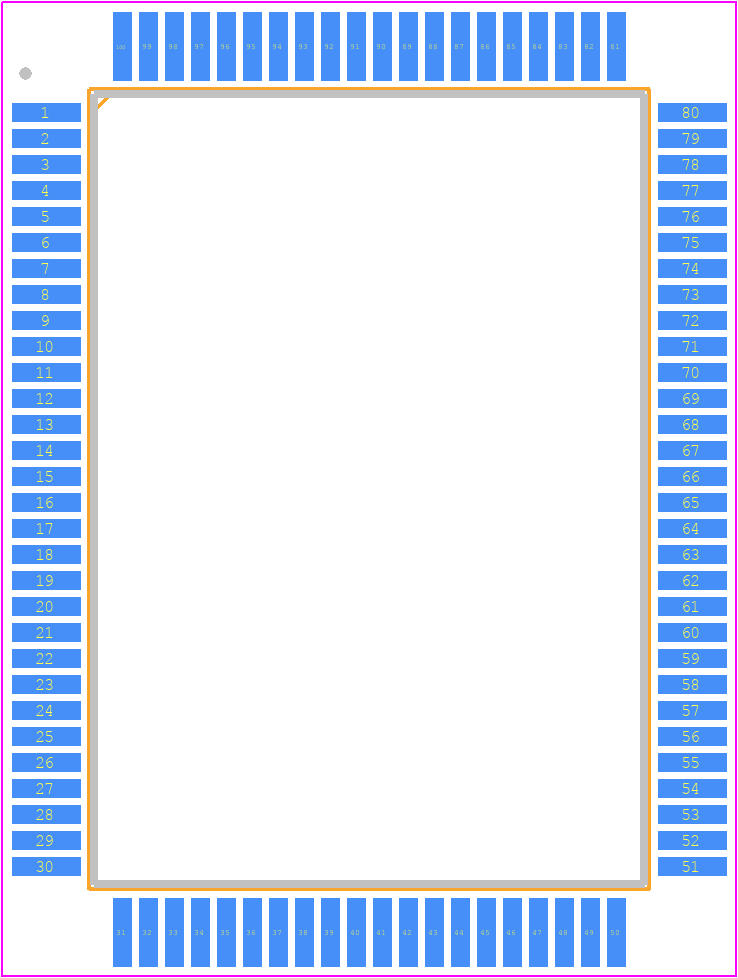

R5F3650EDFA#U0 - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - 100P6S-A
click to zoom
3D Models
R5F3650EDFA#U0 - Renesas Electronics  - 3D model - Quad Flat Packages - 100P6S-A
click to zoom

R5F3650EDFA#U0 Details

  • Manufacturer Part Number:

    R5F3650EDFA#U0

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    QFP

  • Pin Count:

    100

  • Manufacturer Package Code:

    PRQP0100JD

  • Country Of Origin:

    Japan, Mainland China

  • ECCN Code:

    3A991.a.2

  • HTS Code:

    8542.31.00.20

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    3

  • Has ADC:

    YES

  • Address Bus Width:

    20

  • Bit Size:

    16

  • CPU Family:

    M16C

  • Clock Frequency-Max:

    32 MHz

  • DMA Channels:

    YES

  • External Data Bus Width:

    16

  • JESD-30 Code:

    R-PQFP-G100

  • JESD-609 Code:

    e3

  • Length:

    20 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    85

  • Number of Terminals:

    100

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QFP

  • Package Equivalence Code:

    QFP100,.7X.9

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLATPACK

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    20480

  • ROM (words):

    262144

  • ROM Programmability:

    FLASH

  • Speed:

    32 MHz

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Width:

    14 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

R5F3650EDFA#U0 Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VCC first, followed by VDD, and then the clock signal. This ensures proper initialization of the internal voltage regulators and prevents latch-up.
  • The clock settings can be configured using the Clock Control Register (CCR) and the Clock Source Select Register (CSSR). Refer to the datasheet for specific register addresses and bit settings.
  • The maximum operating frequency of the R5F3650EDFA#U0 is 32 MHz, but it can be overclocked to 40 MHz with reduced voltage and temperature ranges.
  • The ADC can be used by configuring the ADC Control Register (ADCCR) and the ADC Channel Select Register (ADCSR). Refer to the datasheet for specific register addresses and bit settings.
  • The VBAT pin is used to connect a battery or a supercapacitor to retain the contents of the internal RAM and the real-time clock (RTC) during power-down mode.
