R5F36S16NFB - Renesas Electronics

R5F36S16NFB Details

• Manufacturer Part Number:

  R5F36S16NFB

• Brand Name:

  Renesas

• Part Life Cycle Code:

  Active

• Part Package Code:

  QFP

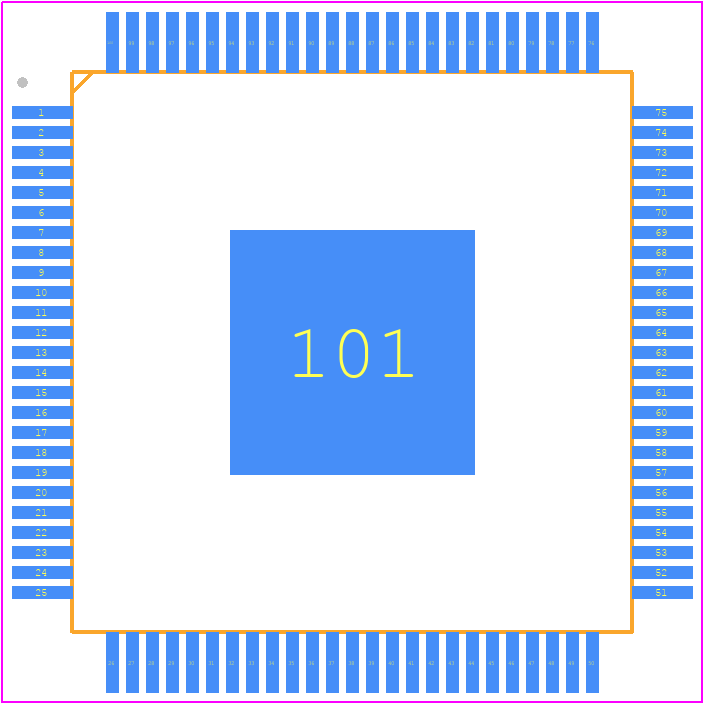

• Package Description:

  14 X 14 MM, 0.50 MM PITCH, PLASTIC, HTQFP-100

• Pin Count:

  100

• Manufacturer Package Code:

  PTQP0100KE-E

• HTS Code:

  8542.31.00.20

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  7.85

• Has ADC:

  YES

• Additional Feature:

  ALSO OPERATES AT 2.7 V MINIMUM SUPPLY AT 24 MHZ

• Bit Size:

  16

• CPU Family:

  M16C/60

• DAC Channels:

  NO

• DMA Channels:

  YES

• JESD-30 Code:

  S-PQFP-G100

• Length:

  14 mm

• Number of I/O Lines:

  53

• Number of Terminals:

  100

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -20 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HTFQFP

• Package Equivalence Code:

  TQFP100,.63SQ

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

• Qualification Status:

  Not Qualified

• RAM (bytes):

  20480

• ROM (words):

  147456

• ROM Programmability:

  FLASH

• Seated Height-Max:

  1.2 mm

• Speed:

  32.72 MHz

• Supply Voltage-Max:

  3.6 V

• Supply Voltage-Min:

  3 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  OTHER

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Width:

  14 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER
