R5F51113ADFL#30 - Renesas Electronics

Description: The RX111 Group has a comprehensive small-capacity ROM/low pin count lineup. With USB 2.0 for Battery Charging (BC 1.2), low consumption current, and fast wakeup from standby, these microcontrollers are suitable for use in computer peripherals, and healthcare and wearable devices. With their three-phase motor control timers, they are also suitable for motor control applications in home appliances and industrial equipment.

Download R5F51113ADFL#30 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

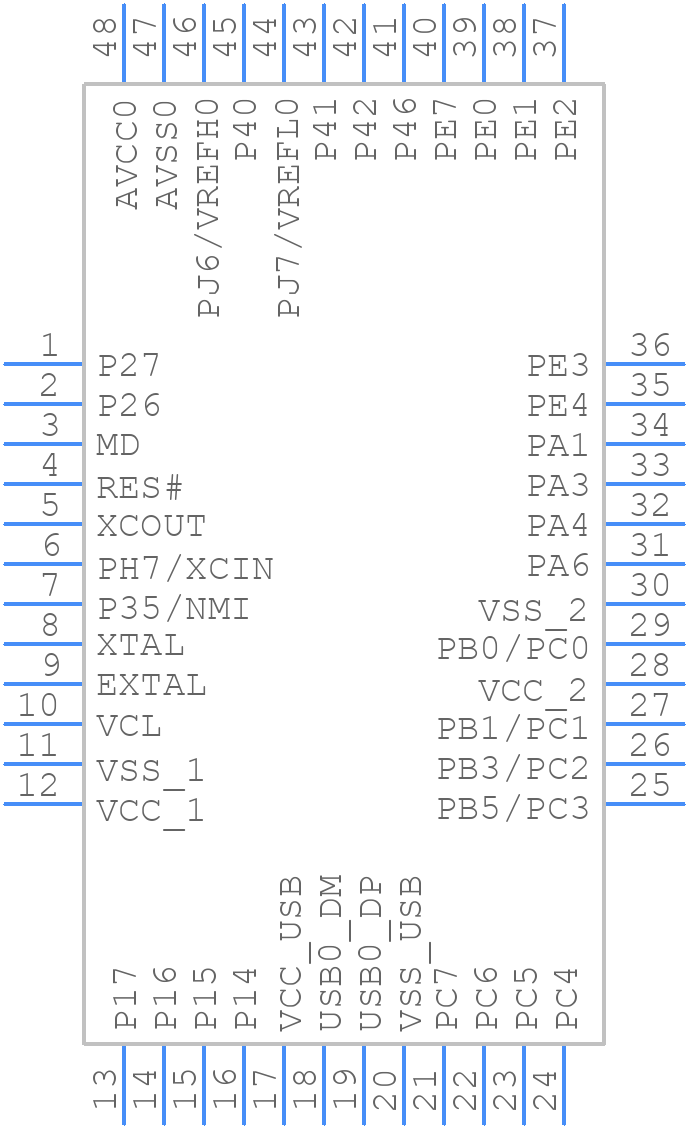

R5F51113ADFL#30 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
R5F51113ADFL#30 - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - PLQP0048KB
click to zoom
3D Models
R5F51113ADFL#30 - Renesas Electronics - 3D model - Quad Flat Packages - PLQP0048KB
click to zoom

R5F51113ADFL#30 Details

  • Manufacturer Part Number:

    R5F51113ADFL#30

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    LQFP

  • Pin Count:

    48

  • Manufacturer Package Code:

    PLQP0048KB

  • ECCN Code:

    3A991.a.2

  • HTS Code:

    8542.31.00.25

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Has ADC:

    YES

  • Bit Size:

    32

  • Clock Frequency-Max:

    32 MHz

  • DMA Channels:

    YES

  • JESD-30 Code:

    S-PQFP-G48

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    30

  • Number of Terminals:

    48

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK

  • ROM (words):

    65536

  • Speed:

    32 MHz

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.8 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

R5F51113ADFL#30 Frequently Asked Questions (FAQs)

  • Renesas recommends using a 1 kΩ resistor and a 10 μF capacitor for the POR circuit to ensure reliable power-on reset operation.
  • The clock settings can be configured using the Clock Control Register (CKCR) and the Clock Source Select Register (CSSR). Refer to the user manual for detailed instructions.
  • The maximum operating frequency of the R5F51113ADFL#30 is 32 MHz, but it can be adjusted to lower frequencies using the clock control registers.
  • The WDT can be enabled and configured using the Watchdog Timer Control Register (WDTCR). The WDT can be used to reset the microcontroller in case of a software fault or hang-up.
  • The NMI pin is used to generate a non-maskable interrupt, which can be used to handle critical events such as a power failure or a system fault.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

R5F51113ADFL#30 Overview

Use the download button to access the R5F51113ADFL#30 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like R5F51, or try a keyword search, such as Microcontrollers
