R5F51113ADNF#UA - Renesas Electronics

Description: The RX111 Group has a comprehensive small-capacity ROM/low pin count lineup. With USB 2.0 for Battery Charging (BC 1.2), low consumption current, and fast wakeup from standby, these microcontrollers are suitable for use in computer peripherals, and healthcare and wearable devices. With their three-phase motor control timers, they are also suitable for motor control applications in home appliances and industrial equipment.

Download R5F51113ADNF#UA Model

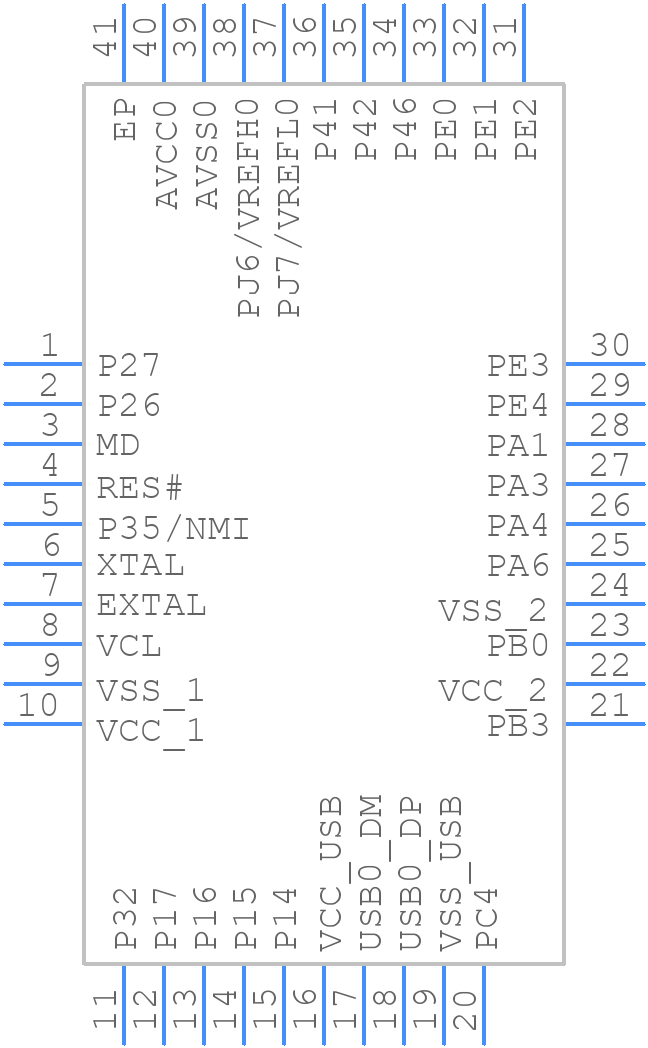

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
R5F51113ADNF#UA - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - P-HWQFN40-6x6-0.50+-+
click to zoom
3D Models
R5F51113ADNF#UA - Renesas Electronics  - 3D model - Quad Flat No-Lead - P-HWQFN40-6x6-0.50+-+
click to zoom

R5F51113ADNF#UA Details

  • Manufacturer Part Number:

    R5F51113ADNF#UA

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    HWQFN

  • Package Description:

    HWQFN-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    PWQN0040KC

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Has ADC:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    NO

  • CPU Family:

    RX

  • Clock Frequency-Max:

    20 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • Format:

    FIXED POINT

  • Integrated Cache:

    NO

  • JESD-30 Code:

    S-XQCC-N40

  • Length:

    6 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of External Interrupts:

    8

  • Number of I/O Lines:

    25

  • Number of Serial I/Os:

    3

  • Number of Terminals:

    40

  • Number of Timers:

    8

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.25SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • RAM (bytes):

    10240

  • ROM (words):

    65536

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    0.8 mm

  • Speed:

    32 MHz

  • Supply Current-Max:

    24 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.8 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

R5F51113ADNF#UA Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VCC first, followed by VBAT, and then the clock signal. This ensures proper initialization of the internal voltage regulator and prevents latch-up.
  • The clock source can be configured using the Clock Control Register (CKCR). The R5F51113ADNF#UA can use an external clock source, a crystal oscillator, or the internal high-speed oscillator. The clock source is selected using the CKS bits in the CKCR register.
  • The VBAT pin is used to connect a battery or a capacitor to retain the contents of the RAM and the real-time clock (RTC) during power-down mode. This allows the microcontroller to retain its state even when the main power supply is turned off.
  • The watchdog timer can be enabled by setting the WTE bit in the Watchdog Timer Control Register (WTCSR). The watchdog timer can be configured to generate an interrupt or a reset signal if the timer expires. The timer period can be set using the WTCSR register.
  • The maximum operating frequency of the R5F51113ADNF#UA is 32 MHz. However, the actual operating frequency may be limited by the clock source and the system configuration.
