R5F51116ADFK#3A - Renesas Electronics

Description: The RX111 Group has a comprehensive small-capacity ROM/low pin count lineup. With USB 2.0 for Battery Charging (BC 1.2), low consumption current, and fast wakeup from standby, these microcontrollers are suitable for use in computer peripherals, and healthcare and wearable devices. With their three-phase motor control timers, they are also suitable for motor control applications in home appliances and industrial equipment.

Download R5F51116ADFK#3A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

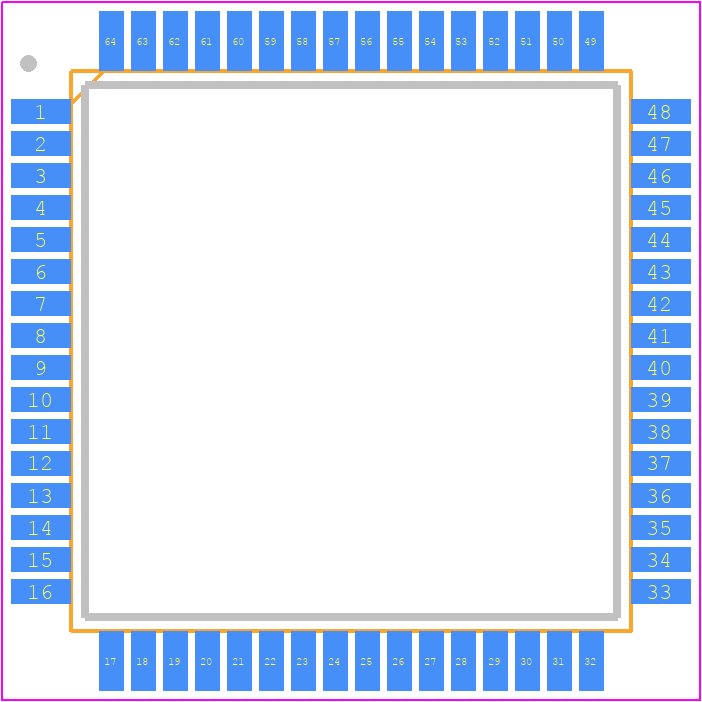

R5F51116ADFK#3A - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - PLQP0064 GA-A__
click to zoom
3D Models
R5F51116ADFK#3A - Renesas Electronics  - 3D model - Quad Flat Packages - PLQP0064 GA-A__
click to zoom

R5F51116ADFK#3A Details

  • Manufacturer Part Number:

    R5F51116ADFK#3A

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    LQFP

  • Package Description:

    LQFP-64

  • Pin Count:

    64

  • Manufacturer Package Code:

    PLQP0064GA

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.25

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    15

  • Has ADC:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    NO

  • CPU Family:

    RX

  • Clock Frequency-Max:

    20 MHz

  • DAC Channels:

    YES

  • DMA Channels:

    YES

  • Format:

    FIXED POINT

  • Integrated Cache:

    NO

  • JESD-30 Code:

    S-PQFP-G64

  • Length:

    14 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of External Interrupts:

    8

  • Number of I/O Lines:

    48

  • Number of Serial I/Os:

    3

  • Number of Terminals:

    64

  • Number of Timers:

    8

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LQFP

  • Package Equivalence Code:

    QFP64,.63SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE

  • RAM (bytes):

    32768

  • ROM (words):

    262144

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.7 mm

  • Speed:

    32 MHz

  • Supply Current-Max:

    27 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.8 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Width:

    14 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

R5F51116ADFK#3A Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VCC first, followed by VDD, and then the clock signal. This ensures proper initialization of the device.
  • The clock settings can be configured using the Clock Control Register (CCR). The CCR allows you to select the clock source, divide the clock frequency, and enable or disable the clock output.
  • The maximum operating frequency of the R5F51116ADFK#3A is 32 MHz. However, the actual operating frequency may be limited by the system clock source and the clock divider settings.
  • The R5F51116ADFK#3A has a built-in watchdog timer (WDT) that can be enabled and configured using the Watchdog Timer Control Register (WDTCR). The WDT can be used to reset the device in case of a software or hardware fault.
  • The NMI pin is used to generate a non-maskable interrupt, which is a high-priority interrupt that cannot be masked or disabled by software. The NMI pin is typically used to handle critical system events, such as a power failure or a system reset.
