R5F51306BDFK#30 - Renesas Electronics

Description: The RX130 Group integrates a built-in max. 36-channel capacitive touch sensor. The capacitive touch sensor uses an improved detection method compared to previous products and so has vastly improved noise immunity, sensitivity and water resistance. As a result, malfunctions have been reduced, and touch keys are now able to be applied to a variety of materials like e.g. wood, other than the typical acrylic or glass: The RX130 touch feature is an ideal fit for consumer electronics products that are used in wet

Download R5F51306BDFK#30 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
R5F51306BDFK#30 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

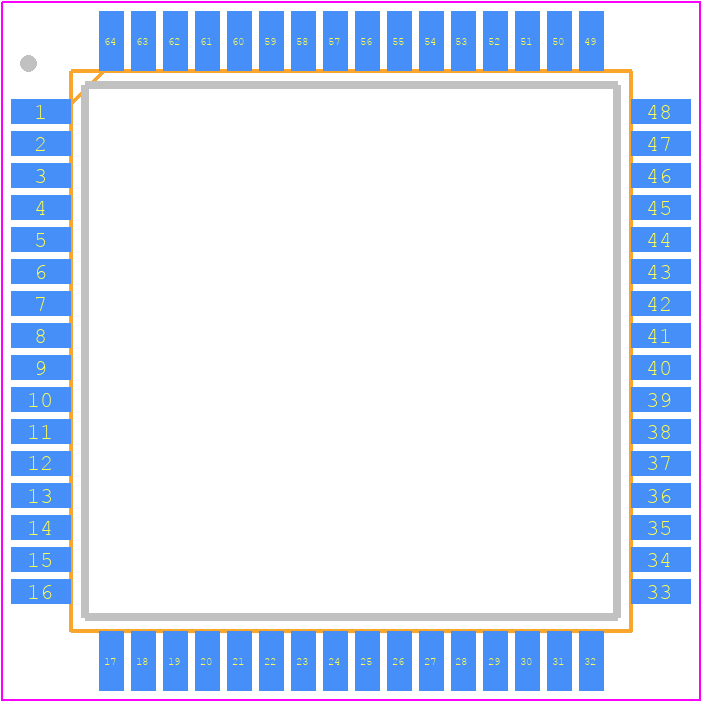

R5F51306BDFK#30 - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - P-LQFP64-14x14-0.80
click to zoom
3D Models
R5F51306BDFK#30 - Renesas Electronics - 3D model - Quad Flat Packages - P-LQFP64-14x14-0.80
click to zoom

R5F51306BDFK#30 Details

  • Manufacturer Part Number:

    R5F51306BDFK#30

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    LQFP

  • Pin Count:

    64

  • Manufacturer Package Code:

    PLQP0064GA

  • Country Of Origin:

    Japan, Mainland China

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    15

  • Moisture Sensitivity Level:

    3

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

R5F51306BDFK#30 Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VCC first, followed by VDD, and then the clock signal. This ensures that the internal voltage regulators and clock circuits are properly initialized.
  • The clock settings can be configured using the Clock Control Register (CCR) and the PLL Control Register (PLLCR). The CCR sets the clock source and frequency, while the PLLCR configures the PLL multiplier and divider.
  • The maximum operating temperature range for the R5F51306BDFK#30 is -40°C to 125°C. However, it's recommended to operate the device within the industrial temperature range of -40°C to 85°C for optimal performance and reliability.
  • The R5F51306BDFK#30 has a built-in watchdog timer that can be enabled and configured using the Watchdog Timer Control Register (WTCR). The watchdog timer can be set to reset the device if it does not receive a refresh signal within a specified time period.
  • The maximum current consumption of the R5F51306BDFK#30 depends on the operating frequency and voltage. According to the datasheet, the maximum current consumption is approximately 350 mA at 3.3 V and 100 MHz operating frequency.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

R5F51306BDFK#30 Overview

Use the download button to access the R5F51306BDFK#30 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like R5F51, or try a keyword search, such as Microcontrollers
