R5F52107CDLJ#U0 - Renesas Electronics

Description: The RX210 Group has a wide operating voltage range of 1.62 V to 5.5 V and can execute calculations at 78 DMIPS (Dhrystone million instructions per second) at up to 50 MHz high-speed operation. Furthermore, it achieves 0.2 mA/MHz low power performance when operating at 50 MHz. Consumption current in deep software standby mode is a mere 0.45 µA. A wide lineup of 48 KB to 1 MB ROM and 48-pin to 145-pin products is available.

Download R5F52107CDLJ#U0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
R5F52107CDLJ#U0 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

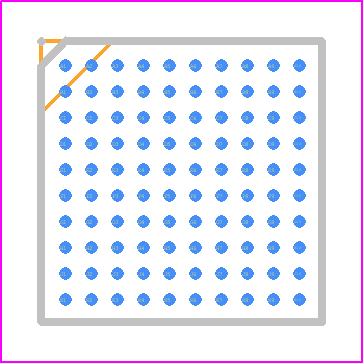

R5F52107CDLJ#U0 - Renesas Electronics PCB footprint - BGA - BGA - P-TFLGA100-7x7-0.65
click to zoom
3D Models
R5F52107CDLJ#U0 - Renesas Electronics - 3D model - BGA - P-TFLGA100-7x7-0.65
click to zoom

R5F52107CDLJ#U0 Details

  • Manufacturer Part Number:

    R5F52107CDLJ#U0

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    TFLGA

  • Pin Count:

    100

  • Manufacturer Package Code:

    PTLG0100JA

  • Country Of Origin:

    Japan

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    3

  • Package Code:

    LFQFP

  • ROM (words):

    393216

  • ROM Programmability:

    FLASH

  • Technology:

    CMOS

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

R5F52107CDLJ#U0 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for R5F52107CDLJ#U0 is -40°C to 85°C.
  • The clock settings for R5F52107CDLJ#U0 can be configured using the Clock Control Register (CCR) and the PLL Control Register (PLLCR). Refer to the Renesas Electronics Corporation's application notes and user manuals for detailed instructions.
  • The maximum clock frequency supported by R5F52107CDLJ#U0 is 32 MHz.
  • R5F52107CDLJ#U0 has several low-power modes, including Sleep, Stop, and Hibernate modes. These modes can be implemented using the Power Management Controller (PMC) and the Low-Power Mode Control Register (LPMCR). Refer to the datasheet and application notes for detailed instructions.
  • The maximum current consumption of R5F52107CDLJ#U0 is approximately 15 mA at 32 MHz clock frequency and 3.3 V supply voltage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

R5F52107CDLJ#U0 Overview

Use the download button to access the R5F52107CDLJ#U0 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like R5F52, or try a keyword search, such as Microcontrollers
