The recommended power-on sequence is to apply VCC first, followed by VCCIO, and then the clock signal. This ensures proper initialization of the device.
The clock settings can be configured using the Clock Control Register (CCR). The CCR allows you to select the clock source, divide the clock frequency, and enable or disable the clock output.
The maximum operating frequency of the R5F52108ADFN#V0 is 32 MHz. However, the actual operating frequency may be limited by the system clock source and the clock divider settings.
The WDT can be enabled or disabled using the Watchdog Timer Control Register (WTCSR). The WDT can be used to reset the device in case of a software or hardware fault. The timeout period can be set using the Watchdog Timer Counter Register (WTCTR).
The BOD is used to detect a drop in the VCC voltage level and reset the device if the voltage falls below a certain threshold. This helps to prevent the device from operating in an unstable state.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
R5F52108ADFN#V0 Overview

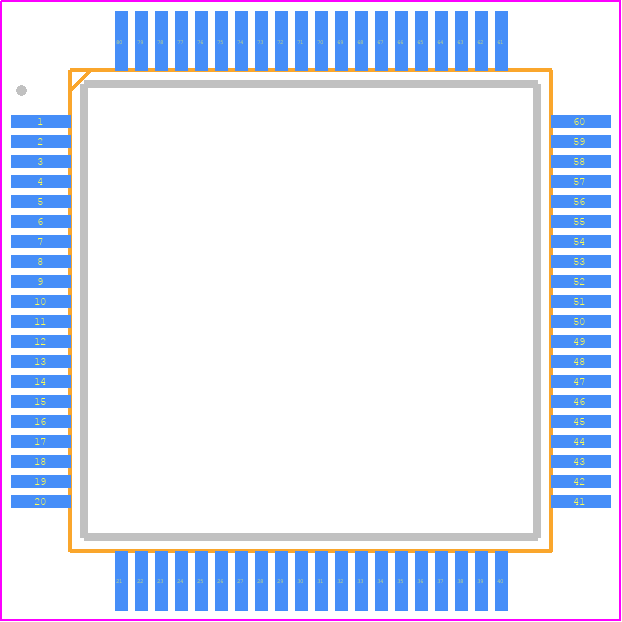

Use the download button to access the R5F52108ADFN#V0 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like R5F52,
or try a keyword search, such as Microcontrollers
