R5F52206BDFM#V0 - Renesas Electronics

Description: The RX220 Group of products is the slimmed-down version of the higher model RX210 Group, and has very high compatibilility in terms of pin arrangement and on the software level.

Download R5F52206BDFM#V0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
R5F52206BDFM#V0 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

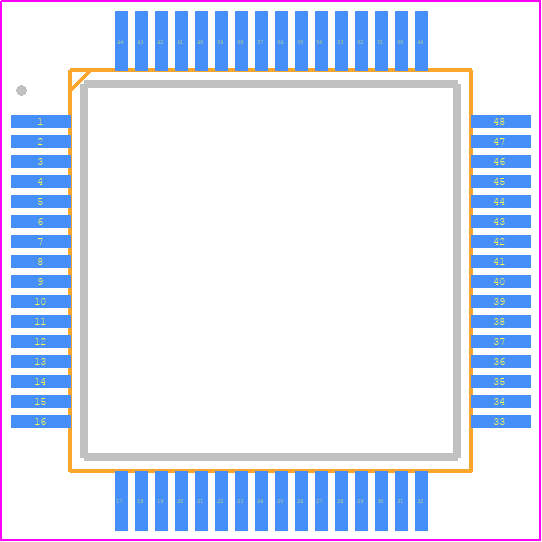

R5F52206BDFM#V0 - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - PLQP0064KB-A_1
click to zoom
3D Models
R5F52206BDFM#V0 - Renesas Electronics - 3D model - Quad Flat Packages - PLQP0064KB-A_1
click to zoom

R5F52206BDFM#V0 Details

  • Manufacturer Part Number:

    R5F52206BDFM#V0

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    LQFP

  • Pin Count:

    64

  • Manufacturer Package Code:

    PLQP0064KB

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Moisture Sensitivity Level:

    3

  • Package Code:

    LFQFP

  • ROM (words):

    262144

  • Technology:

    CMOS

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

R5F52206BDFM#V0 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the R5F52206BDFM#V0 is 2.7V to 3.6V.
  • The clock settings for the R5F52206BDFM#V0 can be configured using the Clock Generator (CG) module. Refer to the datasheet and the Renesas Electronics Corporation's application notes for detailed instructions.
  • The maximum frequency of the R5F52206BDFM#V0 is 32 MHz.
  • Yes, the R5F52206BDFM#V0 has 64 KB of built-in flash memory.
  • The R5F52206BDFM#V0 can be programmed using the Renesas Electronics Corporation's E1/E20 emulator or the IAR Embedded Workbench for RL78. Refer to the datasheet and the Renesas Electronics Corporation's application notes for detailed instructions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

R5F52206BDFM#V0 Overview

Use the download button to access the R5F52206BDFM#V0 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like R5F52, or try a keyword search, such as Microcontrollers
