R5F52306ADFL#30 - Renesas Electronics

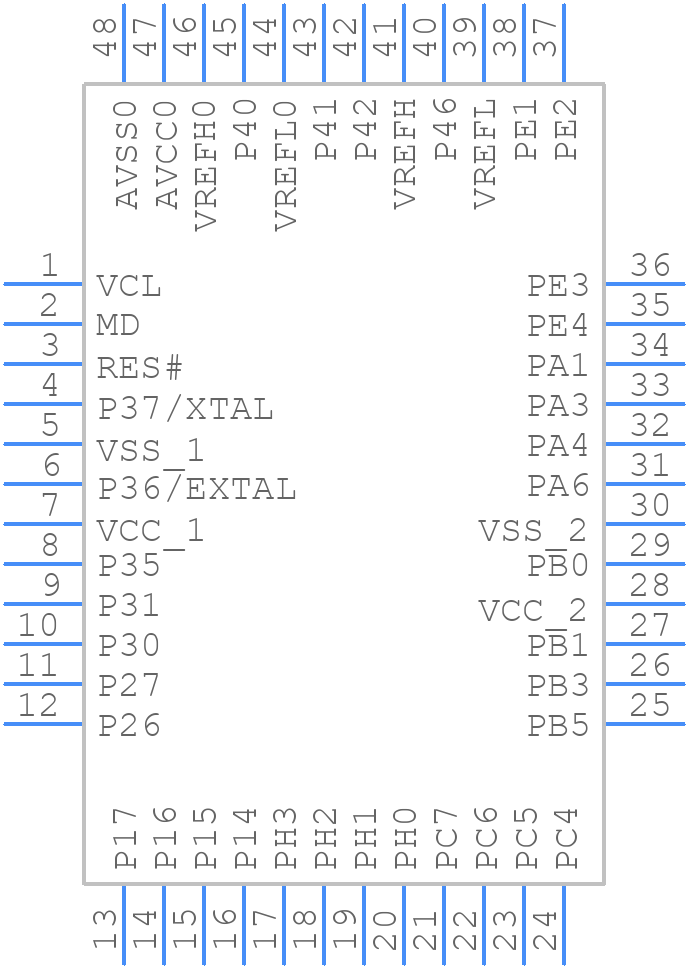

R5F52306ADFL#30 Details

• Manufacturer Part Number:

  R5F52306ADFL#30

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  LQFP

• Package Description:

  LFQFP-48

• Pin Count:

  48

• Manufacturer Package Code:

  PLQP0048KB

• Country Of Origin:

  Japan, Mainland China

• HTS Code:

  8542.31.00.25

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  14

• Has ADC:

  YES

• Bit Size:

  32

• Boundary Scan:

  NO

• CPU Family:

  RXV2

• Clock Frequency-Max:

  20 MHz

• DAC Channels:

  NO

• DMA Channels:

  YES

• Format:

  FLOATING POINT

• Integrated Cache:

  NO

• JESD-30 Code:

  S-PQFP-G48

• Length:

  7 mm

• Low Power Mode:

  YES

• Moisture Sensitivity Level:

  3

• Number of DMA Channels:

  4

• Number of External Interrupts:

  5

• Number of I/O Lines:

  35

• Number of Serial I/Os:

  6

• Number of Terminals:

  48

• Number of Timers:

  17

• On Chip Data RAM Width:

  8

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LFQFP

• Package Equivalence Code:

  QFP48,.35SQ,20

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, LOW PROFILE, FINE PITCH

• RAM (bytes):

  32768

• ROM (words):

  262144

• ROM Programmability:

  FLASH

• Seated Height-Max:

  1.7 mm

• Speed:

  54 MHz

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  2 V

• Supply Voltage-Nom:

  2 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Width:

  7 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER
