R5F523T5ADFM#10 - Renesas Electronics

Description: The RX23T Group is a 32-bit microcontroller suited for single inverter control and has a built-in floating-point processing unit (FPU) that enables users to easily program complex inverter control algorithms. This helps to greatly reduce the man-hours required for software development and maintenance. Furthermore, thanks to the RX200 core, the current consumed in software standby mode (with RAM retention) is a mere 0.45μA. RX23T microcontrollers operate in a broad voltage range from 2.7V to 5.5V, which is u

Download R5F523T5ADFM#10 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
R5F523T5ADFM#10 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

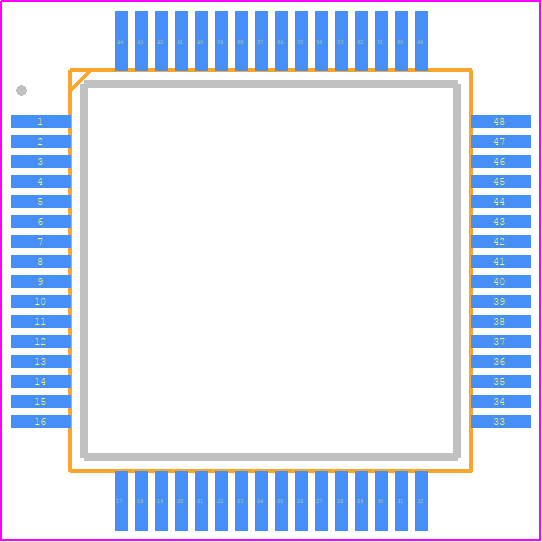

R5F523T5ADFM#10 - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - R5F523T5ADFM#10
click to zoom
3D Models
R5F523T5ADFM#10 - Renesas Electronics - 3D model - Quad Flat Packages - R5F523T5ADFM#10
click to zoom

R5F523T5ADFM#10 Details

  • Manufacturer Part Number:

    R5F523T5ADFM#10

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    LQFP

  • Pin Count:

    52

  • Manufacturer Package Code:

    PLQP0064KB

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    15

  • Moisture Sensitivity Level:

    3

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER
