R5F562TAEDFH#V1 - Renesas Electronics

Description: The RX62T Group of high-performance microcontrollers with a maximum operating frequency of 100MHz are designed for motor control. They are equipped with multifunction timers (MTU, GPT), high-speed 12-bit A/D converter, and 10-bit A/D converter for facilitating motor control. The products also incorporate many safety features to comply with the IEC60730 safety standard for home appliances. In addition to a maximum of 256KB flash and 16KB RAM on-chip memory, they have a maximum of 32KB of on-chip flash memory

Download R5F562TAEDFH#V1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

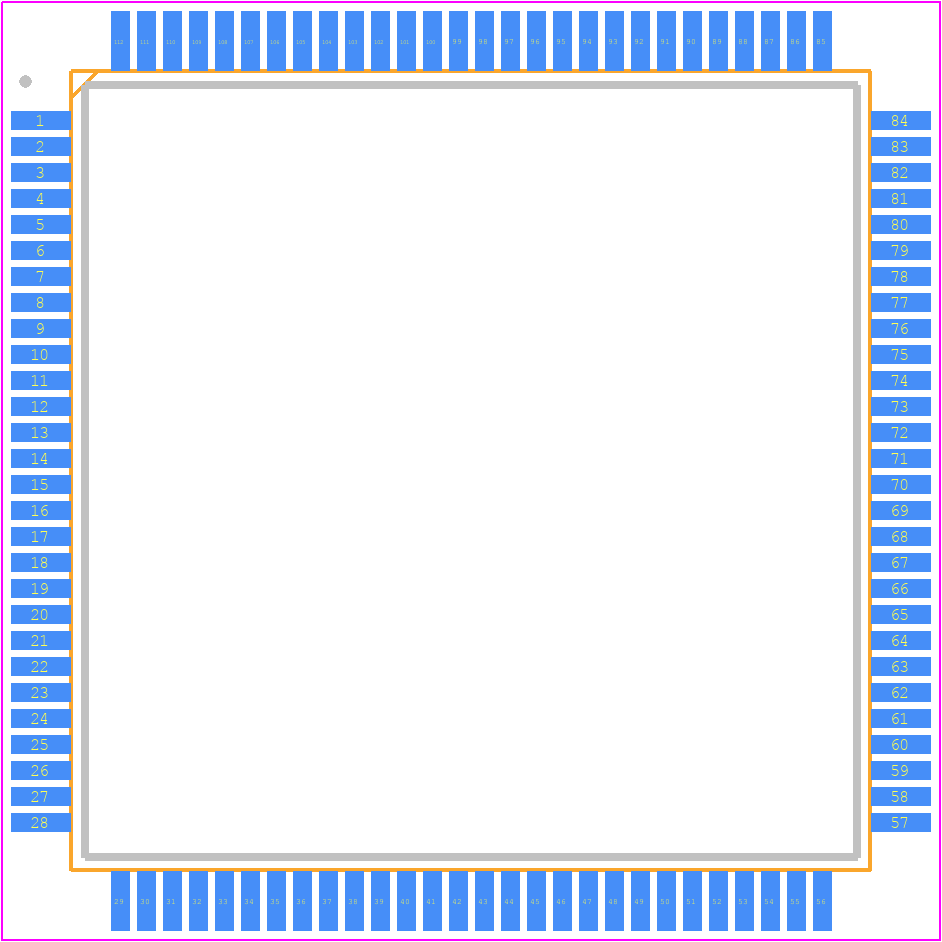

R5F562TAEDFH#V1 - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - 112-Pin LQFP (PLQP0112JA-A)
click to zoom
3D Models
R5F562TAEDFH#V1 - Renesas Electronics  - 3D model - Quad Flat Packages - 112-Pin LQFP (PLQP0112JA-A)
click to zoom

R5F562TAEDFH#V1 Details

  • Manufacturer Part Number:

    R5F562TAEDFH#V1

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    LQFP

  • Package Description:

    LQFP-112

  • Pin Count:

    112

  • Manufacturer Package Code:

    PLQP0112JA

  • Country Of Origin:

    Japan

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    3

  • Has ADC:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • CPU Family:

    RX

  • Clock Frequency-Max:

    12.5 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • Format:

    FLOATING POINT

  • Integrated Cache:

    NO

  • JESD-30 Code:

    S-PQFP-G112

  • Length:

    20 mm

  • Low Power Mode:

    YES

  • Number of DMA Channels:

    1

  • Number of External Interrupts:

    9

  • Number of I/O Lines:

    61

  • Number of Terminals:

    112

  • Number of Timers:

    14

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LQFP

  • Package Equivalence Code:

    QFP112,.87SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE

  • Packing Method:

    TRAY

  • RAM (bytes):

    16384

  • ROM (words):

    262144

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.7 mm

  • Speed:

    100 MHz

  • Supply Current-Max:

    70 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Width:

    20 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

R5F562TAEDFH#V1 Frequently Asked Questions (FAQs)

  • The recommended oscillator crystal frequency for the R5F562TAEDFH#V1 is 12 MHz or 16 MHz, depending on the specific application and clock speed requirements.
  • The pin multiplexing for the R5F562TAEDFH#V1 can be configured using the PMR (Pin Multiplexing Register) and the PFR (Pin Function Register). Refer to the datasheet and the Renesas documentation for specific register settings and examples.
  • The R5F562TAEDFH#V1 has an operating temperature range of -40°C to +85°C, making it suitable for a wide range of industrial and automotive applications.
  • The R5F562TAEDFH#V1 has a built-in watchdog timer (WDT) that can be enabled and configured using the WDTCSR (Watchdog Timer Control and Status Register). Refer to the datasheet for specific register settings and examples.
  • The maximum clock speed for the R5F562TAEDFH#V1 is 32 MHz, which can be achieved using an external clock source or the internal PLL (Phase-Locked Loop) clock multiplier.
