R5F5631MCDFL#10 - Renesas Electronics

Description: RX631 Group microcontrollers come in a comprehensive memory vs. package lineup to suit your system scale. In addition to standard functions such as 12-bit A/D converter, motor control timers, SCI, RSPI, I2C, CAN, and safety features, connectivity functions such as Ethernet and USB host have been enhanced. The lineup also includes products possessing specialized functions, such as sensing/image display using a CMOS camera, or security (hardware AES encryption). Products that support high-temperature (105°C)

Download R5F5631MCDFL#10 Model
Schematic

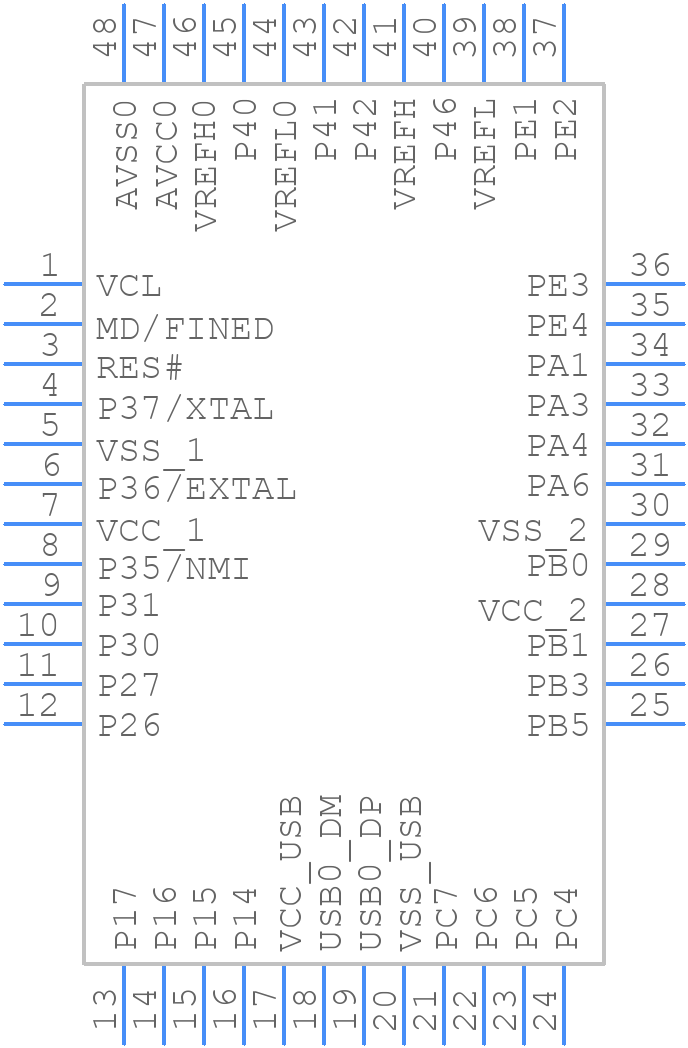

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
R5F5631MCDFL#10 - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - PLQP0048KB-A
click to zoom
3D Models
R5F5631MCDFL#10 - Renesas Electronics  - 3D model - Quad Flat Packages - PLQP0048KB-A
click to zoom

R5F5631MCDFL#10 Details

  • Manufacturer Part Number:

    R5F5631MCDFL#10

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    LQFP

  • Package Description:

    LQFP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    PLQP0048KB

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    3

  • Has ADC:

    YES

  • Address Bus Width:

    24

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • CPU Family:

    RX631

  • Clock Frequency-Max:

    16 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • External Data Bus Width:

    32

  • Format:

    FLOATING POINT

  • Integrated Cache:

    NO

  • JESD-30 Code:

    S-PQFP-G48

  • Length:

    7 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of DMA Channels:

    4

  • Number of External Interrupts:

    16

  • Number of I/O Lines:

    31

  • Number of Serial I/Os:

    6

  • Number of Terminals:

    48

  • Number of Timers:

    4

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Equivalence Code:

    QFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • RAM (bytes):

    65536

  • ROM (words):

    262144

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.7 mm

  • Speed:

    100 MHz

  • Supply Current-Max:

    115 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

R5F5631MCDFL#10 Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to first apply VCC to the device, followed by VCCIO, and then the clock signal. This ensures that the internal voltage regulators and clock circuitry are properly initialized.
  • The clock settings can be configured through the Clock Control Register (CCR) and the PLL Control Register (PCR). The CCR sets the clock source and frequency, while the PCR configures the PLL settings. Refer to the user manual for detailed instructions.
  • The maximum operating temperature range for the R5F5631MCDFL#10 is -40°C to 125°C. However, it's recommended to operate the device within the industrial temperature range of -40°C to 85°C for optimal performance and reliability.
  • The R5F5631MCDFL#10 has a built-in watchdog timer (WDT) that can be enabled and configured through the Watchdog Timer Control Register (WTCR). The WDT can be set to reset the device or generate an interrupt if the timer expires.
  • It's recommended to follow a star topology for the power and ground pins, with separate power and ground planes for the device. This helps to reduce noise and ensure reliable operation. Refer to the application note for detailed layout and routing guidelines.
