R5F563TCADFA#V1 - Renesas Electronics

Description: Like the RX62T Group, the high performance (max. 100 MHz) of this microcontroller makes it ideal for motor control. On-chip functions include multifunction timers (MTU3 and GPT) that facilitate motor control, a high-speed 12-bit A/D converter, and a 10-bit A/D converter.

Download R5F563TCADFA#V1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

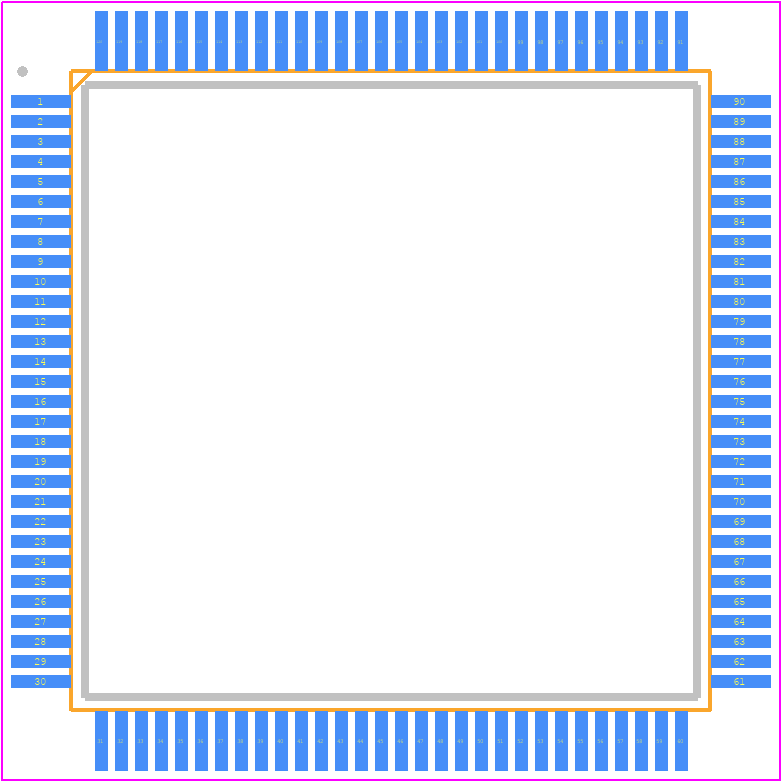

R5F563TCADFA#V1 - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - PLQP0120KA-A
click to zoom
3D Models
R5F563TCADFA#V1 - Renesas Electronics  - 3D model - Quad Flat Packages - PLQP0120KA-A
click to zoom

R5F563TCADFA#V1 Details

  • Manufacturer Part Number:

    R5F563TCADFA#V1

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    LQFP

  • Package Description:

    LFQFP,

  • Pin Count:

    120

  • Manufacturer Package Code:

    PLQP0120KA

  • Reach Compliance Code:

    compliant

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • Risk Rank:

    7.51

  • YTEOL:

    10.33

  • Has ADC:

    YES

  • Address Bus Width:

    20

  • Bit Size:

    32

  • CPU Family:

    RX63T

  • Clock Frequency-Max:

    14 MHz

  • DAC Channels:

    YES

  • DMA Channels:

    YES

  • External Data Bus Width:

    16

  • JESD-30 Code:

    S-PQFP-G120

  • Length:

    16 mm

  • Number of DMA Channels:

    4

  • Number of I/O Lines:

    93

  • Number of Terminals:

    120

  • Number of Timers:

    24

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • RAM (bytes):

    32768

  • ROM (words):

    393216

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.7 mm

  • Speed:

    100 MHz

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    16 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER
