R5F563TEADFA#V1 - Renesas Electronics

R5F563TEADFA#V1 Details

• Manufacturer Part Number:

  R5F563TEADFA#V1

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Not Recommended

• Part Package Code:

  LQFP

• Package Description:

  LQFP-120

• Pin Count:

  120

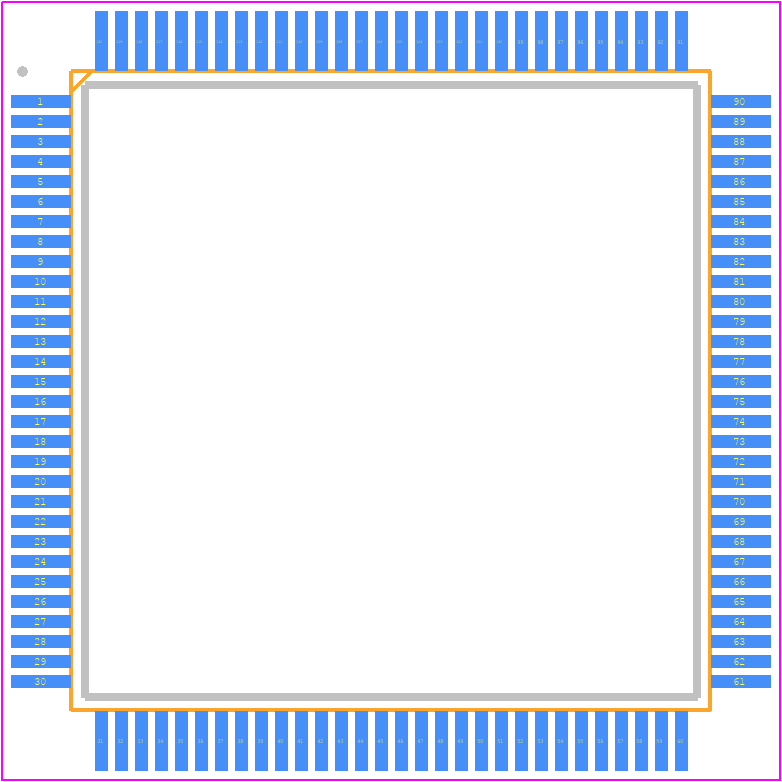

• Manufacturer Package Code:

  PLQP0120KA

• HTS Code:

  8542.31.00.25

• Factory Lead Time:

  12 Weeks

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  7

• Has ADC:

  YES

• Address Bus Width:

  20

• Bit Size:

  32

• Boundary Scan:

  NO

• CPU Family:

  RX63T

• Clock Frequency-Max:

  14 MHz

• DAC Channels:

  YES

• DMA Channels:

  YES

• External Data Bus Width:

  16

• JESD-30 Code:

  S-PQFP-G120

• Length:

  16 mm

• Number of DMA Channels:

  4

• Number of I/O Lines:

  93

• Number of Terminals:

  120

• Number of Timers:

  24

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LFQFP

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, LOW PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• RAM (bytes):

  49152

• ROM (words):

  524288

• ROM Programmability:

  FLASH

• Seated Height-Max:

  1.7 mm

• Speed:

  100 MHz

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Width:

  16 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER
