R5F56519ADLK#20 - Renesas Electronics

Description: The Renesas RX651 is mainstream RX microcontrollers with RXv2 core, large-capacity RAM, and enhanced security, connectivity and human machine interface (HMI) capabilities.

Download R5F56519ADLK#20 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

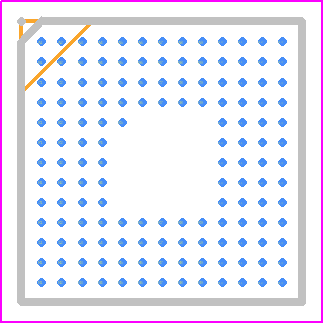

R5F56519ADLK#20 - Renesas Electronics PCB footprint - BGA - BGA - (145-Pin TFLGA)
click to zoom
3D Models
R5F56519ADLK#20 - Renesas Electronics  - 3D model - BGA - (145-Pin TFLGA)
click to zoom

R5F56519ADLK#20 Details

  • Manufacturer Part Number:

    R5F56519ADLK#20

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TFLGA

  • Package Description:

    TFLGA-145

  • Pin Count:

    145

  • Manufacturer Package Code:

    PTLG0145KA

  • Country Of Origin:

    Japan

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    10

  • Has ADC:

    YES

  • Address Bus Width:

    24

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • CPU Family:

    RX651

  • Clock Frequency-Max:

    24 MHz

  • DAC Channels:

    YES

  • DMA Channels:

    YES

  • External Data Bus Width:

    32

  • Format:

    FLOATING-POINT

  • Integrated Cache:

    YES

  • JESD-30 Code:

    S-XBGA-N145

  • Length:

    7 mm

  • Low Power Mode:

    YES

  • Number of DMA Channels:

    8

  • Number of External Interrupts:

    16

  • Number of I/O Lines:

    111

  • Number of Serial I/Os:

    12

  • Number of Terminals:

    145

  • Number of Timers:

    27

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    TFLGA

  • Package Equivalence Code:

    LGA145,13X13,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, THIN PROFILE, FINE PITCH

  • RAM (bytes):

    262144

  • ROM (words):

    1048576

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.05 mm

  • Speed:

    120 MHz

  • Supply Current-Max:

    40 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER
