R5F565NEDDBG#20 - Renesas Electronics

R5F565NEDDBG#20 Details

• Manufacturer Part Number:

  R5F565NEDDBG#20

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

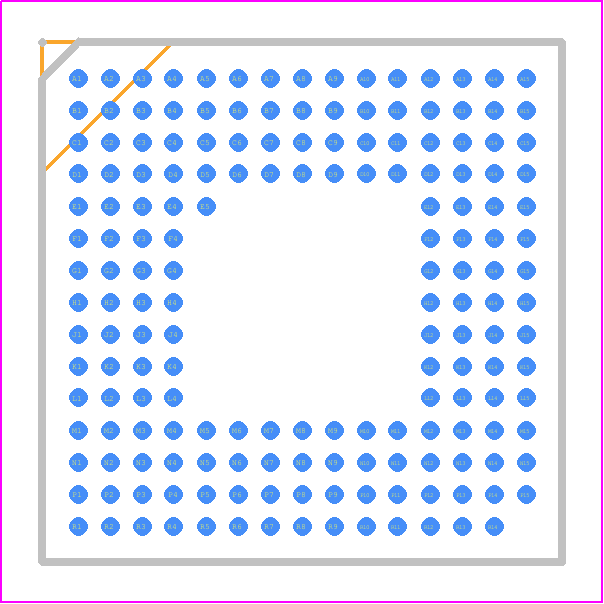

• Part Package Code:

  LFBGA

• Package Description:

  LFBGA-176

• Pin Count:

  176

• Manufacturer Package Code:

  PLBG0176GE

• Country Of Origin:

  Japan

• ECCN Code:

  3A991.A.2

• HTS Code:

  8542.31.00.25

• Factory Lead Time:

  12 Weeks

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  10

• Has ADC:

  YES

• Address Bus Width:

  24

• Bit Size:

  32

• Boundary Scan:

  YES

• CPU Family:

  RX65N

• Clock Frequency-Max:

  24 MHz

• DAC Channels:

  YES

• DMA Channels:

  YES

• External Data Bus Width:

  32

• Format:

  FLOATING POINT

• Integrated Cache:

  YES

• JESD-30 Code:

  S-PBGA-B176

• Length:

  13 mm

• Low Power Mode:

  YES

• Number of DMA Channels:

  8

• Number of External Interrupts:

  16

• Number of I/O Lines:

  136

• Number of Serial I/Os:

  15

• Number of Terminals:

  176

• Number of Timers:

  19

• On Chip Data RAM Width:

  8

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LFBGA

• Package Equivalence Code:

  BGA176,15X15,32

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, LOW PROFILE, FINE PITCH

• RAM (bytes):

  655360

• ROM (words):

  2097152

• ROM Programmability:

  FLASH

• Seated Height-Max:

  1.4 mm

• Speed:

  120 MHz

• Supply Current-Max:

  40 mA

• Supply Voltage-Max:

  3.6 V

• Supply Voltage-Min:

  3.3 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Form:

  BALL

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  BOTTOM

• Width:

  13 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER
