R5F61655N50FPV - Renesas Electronics

Description: The H8SX/1655, H8SX/1655M Group is supported only for customers who have already adopted these products. The RX651 Group is recommended for new designs.

Download R5F61655N50FPV Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

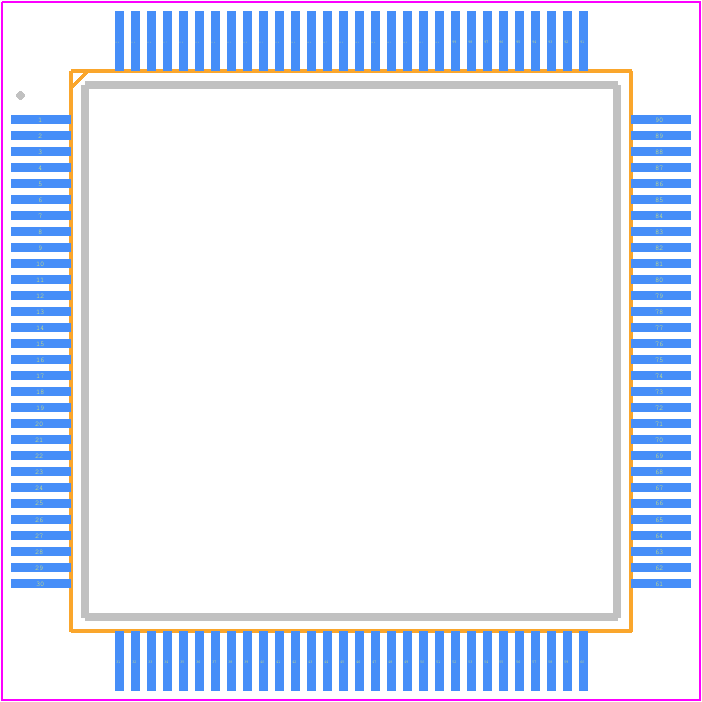

R5F61655N50FPV - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - PLQP0120LA-A-1
click to zoom
3D Models
R5F61655N50FPV - Renesas Electronics  - 3D model - Quad Flat Packages - PLQP0120LA-A-1
click to zoom

R5F61655N50FPV Details

  • Manufacturer Part Number:

    R5F61655N50FPV

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    LQFP

  • Pin Count:

    120

  • Manufacturer Package Code:

    PLQP0120LA

  • Country Of Origin:

    Japan

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    5

  • Has ADC:

    YES

  • Address Bus Width:

    21

  • Bit Size:

    32

  • CPU Family:

    H8SX

  • Clock Frequency-Max:

    18 MHz

  • DMA Channels:

    YES

  • External Data Bus Width:

    16

  • JESD-30 Code:

    S-PQFP-G120

  • Length:

    14 mm

  • Number of I/O Lines:

    75

  • Number of Terminals:

    120

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QFP

  • Package Equivalence Code:

    QFP120,.63SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    40960

  • ROM (words):

    524288

  • ROM Programmability:

    FLASH

  • Speed:

    50 MHz

  • Supply Current-Max:

    85 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    14 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

R5F61655N50FPV Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the R5F61655N50FPV is 50 MHz.
  • The R5F61655N50FPV has 512 KB of flash memory.
  • The maximum ambient temperature range for the R5F61655N50FPV is -40°C to +85°C.
  • Yes, the R5F61655N50FPV has a 12-bit analog-to-digital converter (ADC) with 16 channels.
  • Yes, the R5F61655N50FPV has several low-power modes, including sleep, stop, and deep standby modes, to reduce power consumption.
