R5F72167GDFA#V1 - Renesas Electronics

Description: The SH7216 Series with 32-bit SH-2A CPU core offers a maximum operating frequency of 200 MHz, representing a 1.25-fold improvement in performance over the 160 MHz of Renesas Electronics's existing the SH7211. They also include large-capacity high-speed flash memory and RAM through the use of cutting-edge flash memory technology. Featuring an on-chip power supply step-down circuit, these microcontrollers are designed to achieve lower current dissipation by suppressing the increase in current dissipation asso

Download R5F72167GDFA#V1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

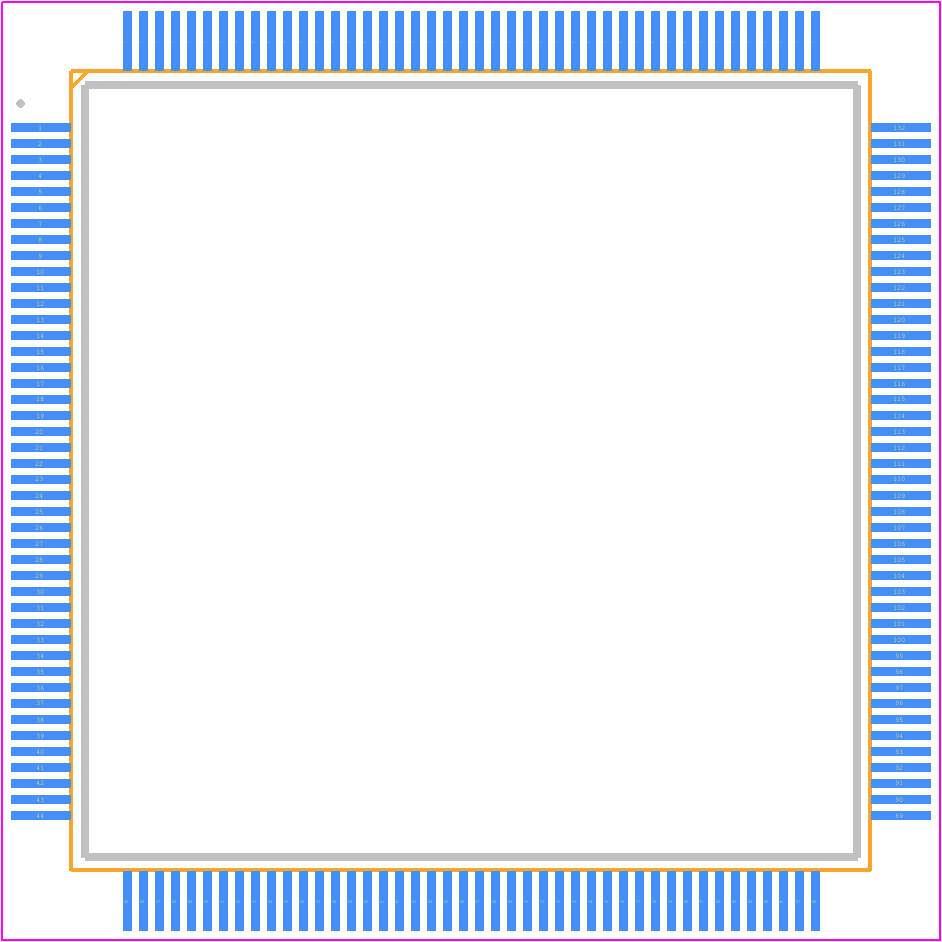

R5F72167GDFA#V1 - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - P-LFQFP176-20x20-0.40
click to zoom
3D Models
R5F72167GDFA#V1 - Renesas Electronics  - 3D model - Quad Flat Packages - P-LFQFP176-20x20-0.40
click to zoom

R5F72167GDFA#V1 Details

  • Manufacturer Part Number:

    R5F72167GDFA#V1

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    LQFP

  • Package Description:

    LQFP-176

  • Pin Count:

    176

  • Manufacturer Package Code:

    PLQP0176LA

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    9

  • Has ADC:

    YES

  • Address Bus Width:

    26

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • CPU Family:

    SH-2A

  • Clock Frequency-Max:

    12.5 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • External Data Bus Width:

    32

  • Format:

    FLOATING POINT

  • Integrated Cache:

    YES

  • JESD-30 Code:

    S-PQFP-G176

  • Length:

    20 mm

  • Low Power Mode:

    YES

  • Number of DMA Channels:

    8

  • Number of External Interrupts:

    9

  • Number of I/O Lines:

    110

  • Number of Serial I/Os:

    6

  • Number of Terminals:

    176

  • Number of Timers:

    11

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Equivalence Code:

    QFP176,.87SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • RAM (bytes):

    131072

  • ROM (words):

    1048576

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.7 mm

  • Speed:

    100 MHz

  • Supply Current-Max:

    120 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3.3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    20 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

R5F72167GDFA#V1 Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VCC first, followed by VDD, and then the clock signal. This ensures that the internal voltage regulators and clock circuitry are properly initialized.
  • The clock settings can be configured using the Clock Control Register (CCR) and the Clock Source Select Register (CSSR). The CCR sets the clock frequency and the CSSR selects the clock source. Refer to the user manual for specific register settings and values.
  • The maximum operating temperature range for the R5F72167GDFA#V1 is -40°C to +125°C. However, it's recommended to operate within the industrial temperature range of -40°C to +85°C for optimal performance and reliability.
  • The R5F72167GDFA#V1 has a built-in watchdog timer (WDT) that can be enabled and configured using the Watchdog Timer Control Register (WTCSR). The WDT can be set to reset the device or generate an interrupt if the timer expires.
  • The maximum current consumption of the R5F72167GDFA#V1 depends on the operating frequency, voltage, and peripheral usage. Refer to the datasheet for specific current consumption values under different operating conditions.
