R6024KNXC7G - ROHM Semiconductor

Description: 600V 24A TO-220FM, High-speed switching Power MOSFET

Download R6024KNXC7G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

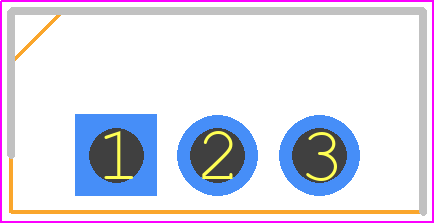

R6024KNXC7G - ROHM Semiconductor PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - TO-220FM_2022-1
click to zoom
3D Models
R6024KNXC7G - ROHM Semiconductor  - 3D model - Transistor Outline, Vertical - TO-220FM_2022-1
click to zoom

R6024KNXC7G Details

  • Manufacturer Part Number:

    R6024KNXC7G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TO-220FM, 3 PIN

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    7

  • Avalanche Energy Rating (Eas):

    497 mJ

  • Case Connection:

    ISOLATED

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    600 V

  • Drain Current-Max (ID):

    24 A

  • Drain-source On Resistance-Max:

    0.165 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    60 pF

  • JEDEC-95 Code:

    TO-220AB

  • JESD-30 Code:

    R-PSFM-T3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    74 W

  • Pulsed Drain Current-Max (IDM):

    72 A

  • Surface Mount:

    NO

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

R6024KNXC7G Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the R6024KNXC7G is -40°C to 105°C.
  • To ensure the stability of the output voltage, it is recommended to use a capacitor with a capacitance value of 10uF or more, and an ESR of 1Ω or less, between the VOUT and GND pins.
  • The maximum input voltage that the R6024KNXC7G can handle is 36V.
  • The output voltage of the R6024KNXC7G can be calculated using the formula: VOUT = 0.8V x (1 + R1/R2), where R1 and R2 are the resistors connected to the FB pin.
  • The EN (Enable) pin is used to turn the regulator on or off. When the EN pin is high, the regulator is enabled, and when it is low, the regulator is disabled.
