R6024KNZ4C13 - ROHM Semiconductor

Description: 600V 24A TO-247, High-speed switching Power MOSFET

Download R6024KNZ4C13 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
R6024KNZ4C13 - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints

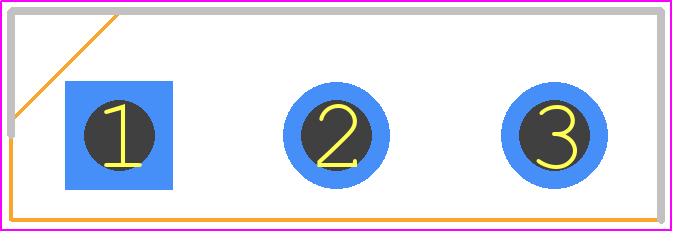

R6024KNZ4C13 - ROHM Semiconductor PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - TO-247_
click to zoom
3D Models
R6024KNZ4C13 - ROHM Semiconductor - 3D model - Transistor Outline, Vertical - TO-247_
click to zoom

R6024KNZ4C13 Details

  • Manufacturer Part Number:

    R6024KNZ4C13

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    2019-11-15

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    7

  • Avalanche Energy Rating (Eas):

    497 mJ

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    600 V

  • Drain Current-Max (ID):

    24 A

  • Drain-source On Resistance-Max:

    0.165 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JEDEC-95 Code:

    TO-247

  • JESD-30 Code:

    R-PSFM-T3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    245 W

  • Pulsed Drain Current-Max (IDM):

    72 A

  • Surface Mount:

    NO

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON
