The thermal resistance (junction-to-ambient) of the R6035ENZ4C13 is typically around 30°C/W, but it can vary depending on the PCB layout, airflow, and other environmental factors.
The R6035ENZ4C13 has an operating temperature range of -40°C to 105°C, but it's recommended to derate the output current and voltage at higher temperatures to ensure reliability and prevent overheating.
The output voltage tolerance of the R6035ENZ4C13 is typically ±2% over the entire operating temperature range. You can calculate the tolerance by multiplying the nominal output voltage (1.3V) by the tolerance percentage (2%).
The recommended input capacitor value for the R6035ENZ4C13 is 1uF to 10uF, with a voltage rating of at least 6.3V. A larger capacitor value can help improve input voltage ripple rejection and stability.
Yes, the R6035ENZ4C13 can be used in battery-powered devices, but you should consider the quiescent current (Iq) and the dropout voltage (Vdo) to ensure efficient power management and minimize battery drain.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
R6035ENZ4C13 Overview

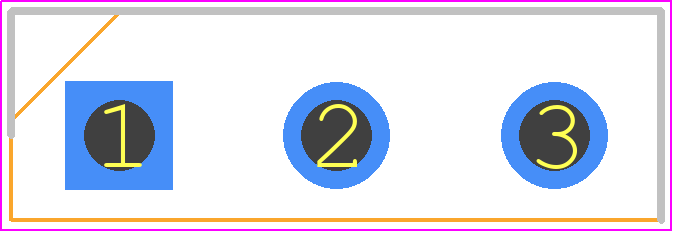

Use the download button to access the R6035ENZ4C13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like R6035,
or try a keyword search, such as Power Field-Effect Transistors
