The thermal resistance (θJA) of the R6035KNZ1C9 is typically around 30°C/W, but it can vary depending on the PCB design, layout, and environment. It's essential to consider this value when designing the thermal management of the system.
To ensure stability with the R6035KNZ1C9, it's crucial to follow the recommended layout and component placement guidelines, use a suitable output capacitor (e.g., 10uF or larger), and maintain a minimum input capacitance of 1uF. Additionally, ensure that the input voltage is within the recommended range and that the device is operated within its specified temperature range.
The maximum dropout voltage of the R6035KNZ1C9 is around 1.5V, which means that the input voltage should be at least 1.5V higher than the output voltage to maintain regulation.
While the R6035KNZ1C9 has an operating temperature range of -40°C to 105°C, it's essential to consider the derating of the output current and power dissipation at higher temperatures. Be sure to check the datasheet and application notes for specific guidance on high-temperature operation.
To calculate the power dissipation of the R6035KNZ1C9, use the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current. Be sure to consider the maximum power dissipation rating of the device (typically around 1.5W) and ensure that the thermal management of the system can handle the calculated power dissipation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
R6035KNZ1C9 Overview

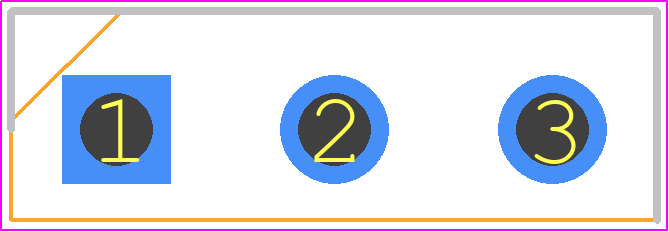

Use the download button to access the R6035KNZ1C9 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like R6035,
or try a keyword search, such as Power Field-Effect Transistors
