R6035VNXC7G - ROHM Semiconductor

Description: 600V 17A TO-220FM, PrestoMOS™ with integrated high-speed diode

Download R6035VNXC7G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
R6035VNXC7G - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints

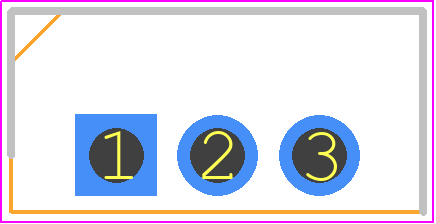

R6035VNXC7G - ROHM Semiconductor PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - TO-220FM--1
click to zoom
3D Models
R6035VNXC7G - ROHM Semiconductor - 3D model - Transistor Outline, Vertical - TO-220FM--1
click to zoom

R6035VNXC7G Details

  • Manufacturer Part Number:

    R6035VNXC7G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TO-220FM, 3 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    5.95

  • Avalanche Energy Rating (Eas):

    148 mJ

  • Case Connection:

    ISOLATED

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    600 V

  • Drain Current-Max (ID):

    17 A

  • Drain-source On Resistance-Max:

    0.119 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JEDEC-95 Code:

    TO-220AB

  • JESD-30 Code:

    R-PSFM-T3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    81 W

  • Pulsed Drain Current-Max (IDM):

    105 A

  • Surface Mount:

    NO

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

R6035VNXC7G Frequently Asked Questions (FAQs)

  • The thermal resistance (θJA) of the R6035VNXC7G is typically around 30°C/W, but it can vary depending on the PCB layout, ambient temperature, and other factors. It's essential to consider thermal management when designing with this component.
  • The R6035VNXC7G has an operating temperature range of -40°C to 105°C. While it can tolerate high temperatures, it's crucial to ensure that the junction temperature (TJ) does not exceed 150°C. Proper thermal design and heat sinking may be necessary for high-temperature applications.
  • To ensure stability and prevent oscillation, follow the recommended layout and component selection guidelines in the datasheet. Use a suitable output capacitor with a low ESR (Equivalent Series Resistance) and a minimum capacitance of 1μF. Additionally, keep the input and output capacitors close to the regulator and use a low-impedance PCB layout.
  • The R6035VNXC7G has a maximum input voltage rating of 36V. Exceeding this voltage can cause damage to the device. Ensure that the input voltage is within the recommended range to maintain safe operation.
  • Yes, the R6035VNXC7G is suitable for battery-powered devices due to its low quiescent current (IQ) of 1.5μA (typical) and low dropout voltage (VDO). However, consider the battery life and overall system power consumption when selecting this component.
