R6535KNX3C16 - ROHM Semiconductor

R6535KNX3C16 Details

• Manufacturer Part Number:

  R6535KNX3C16

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• Factory Lead Time:

  21 Weeks

• Manufacturer:

  ROHM Semiconductor

• YTEOL:

  7

• Avalanche Energy Rating (Eas):

  867 mJ

• Configuration:

  SINGLE WITH BUILT-IN DIODE

• DS Breakdown Voltage-Min:

  650 V

• Drain Current-Max (ID):

  35 A

• Drain-source On Resistance-Max:

  0.115 Ω

• FET Technology:

  METAL-OXIDE SEMICONDUCTOR

• Feedback Cap-Max (Crss):

  85 pF

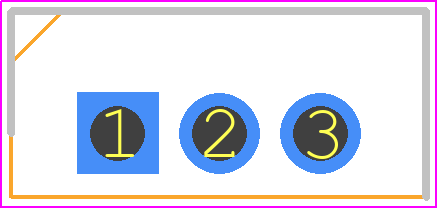

• JEDEC-95 Code:

  TO-220AB

• JESD-30 Code:

  R-PSFM-T3

• Moisture Sensitivity Level:

  1

• Number of Elements:

  1

• Number of Terminals:

  3

• Operating Mode:

  ENHANCEMENT MODE

• Operating Temperature-Max:

  150 °C

• Operating Temperature-Min:

  -55 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  FLANGE MOUNT

• Packing Method:

  TUBE

• Peak Reflow Temperature (Cel):

  260

• Polarity/Channel Type:

  N-CHANNEL

• Power Dissipation-Max (Abs):

  370 W

• Pulsed Drain Current-Max (IDM):

  105 A

• Surface Mount:

  NO

• Terminal Form:

  THROUGH-HOLE

• Terminal Position:

  SINGLE

• Time@Peak Reflow Temperature-Max (s):

  30

• Transistor Application:

  SWITCHING

• Transistor Element Material:

  SILICON
