R7F101GAG2DSP#AA0 - Renesas Electronics

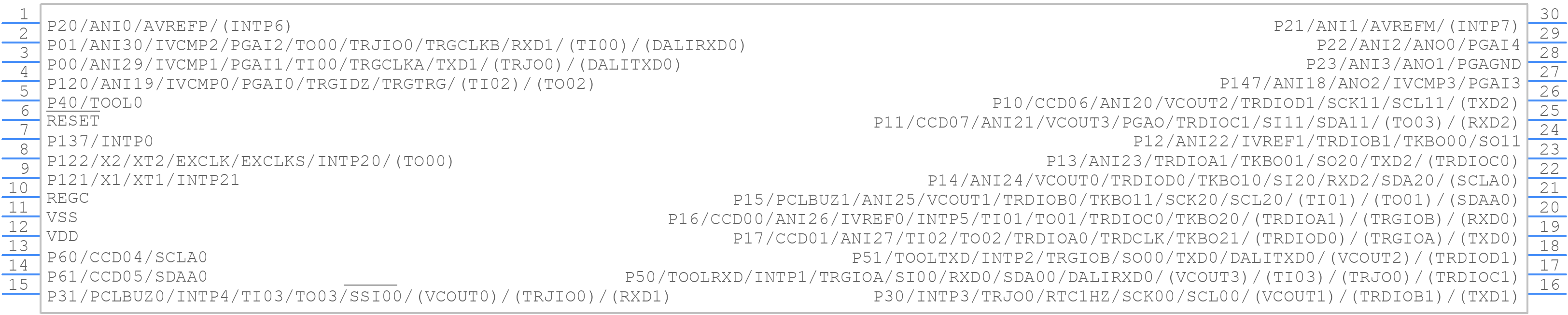

R7F101GAG2DSP#AA0 Details

• Manufacturer Part Number:

  R7F101GAG2DSP#AA0

• Part Life Cycle Code:

  Obsolete

• Package Description:

  LSSOP-30

• ECCN Code:

  3A991.a.2

• HTS Code:

  8542.31.00.20

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Has ADC:

  YES

• Bit Size:

  16

• Boundary Scan:

  NO

• CPU Family:

  RL78

• Clock Frequency-Max:

  64 MHz

• DAC Channels:

  YES

• DMA Channels:

  NO

• Format:

  FIXED POINT

• Integrated Cache:

  NO

• JESD-30 Code:

  R-PDSO-G20

• Length:

  9.85 mm

• Low Power Mode:

  YES

• Number of External Interrupts:

  12

• Number of I/O Lines:

  26

• Number of Serial I/Os:

  3

• Number of Terminals:

  30

• Number of Timers:

  19

• On Chip Data RAM Width:

  8

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LSSOP

• Package Equivalence Code:

  SSOP30,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

• Packing Method:

  TRAY

• RAM (bytes):

  12288

• ROM (words):

  131072

• ROM Programmability:

  FLASH

• Seated Height-Max:

  1.4 mm

• Speed:

  48 MHz

• Supply Current-Max:

  17.6 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  1.6 V

• Supply Voltage-Nom:

  1.8 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Width:

  6.1 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER
