R7F123FGG4AFB-C#BA0 - Renesas Electronics

Description: The RL78/F23 next-generation super low-power automotive microcontrollers are ideal for realizing future highly reliable smart actuators and sensors, as well as low-end body ECUs. As an innovative prolongation of the known RL78/F1x MCUs, the RL78/F23 can cover prospective market requirements. With its increased CPU performance, high-temperature capability, and enhanced peripheral feature set, RL78/F23 is a perfect fit for various applications.RL78/F2x products are designed according to ISO 26262 and provide

Download R7F123FGG4AFB-C#BA0 Model

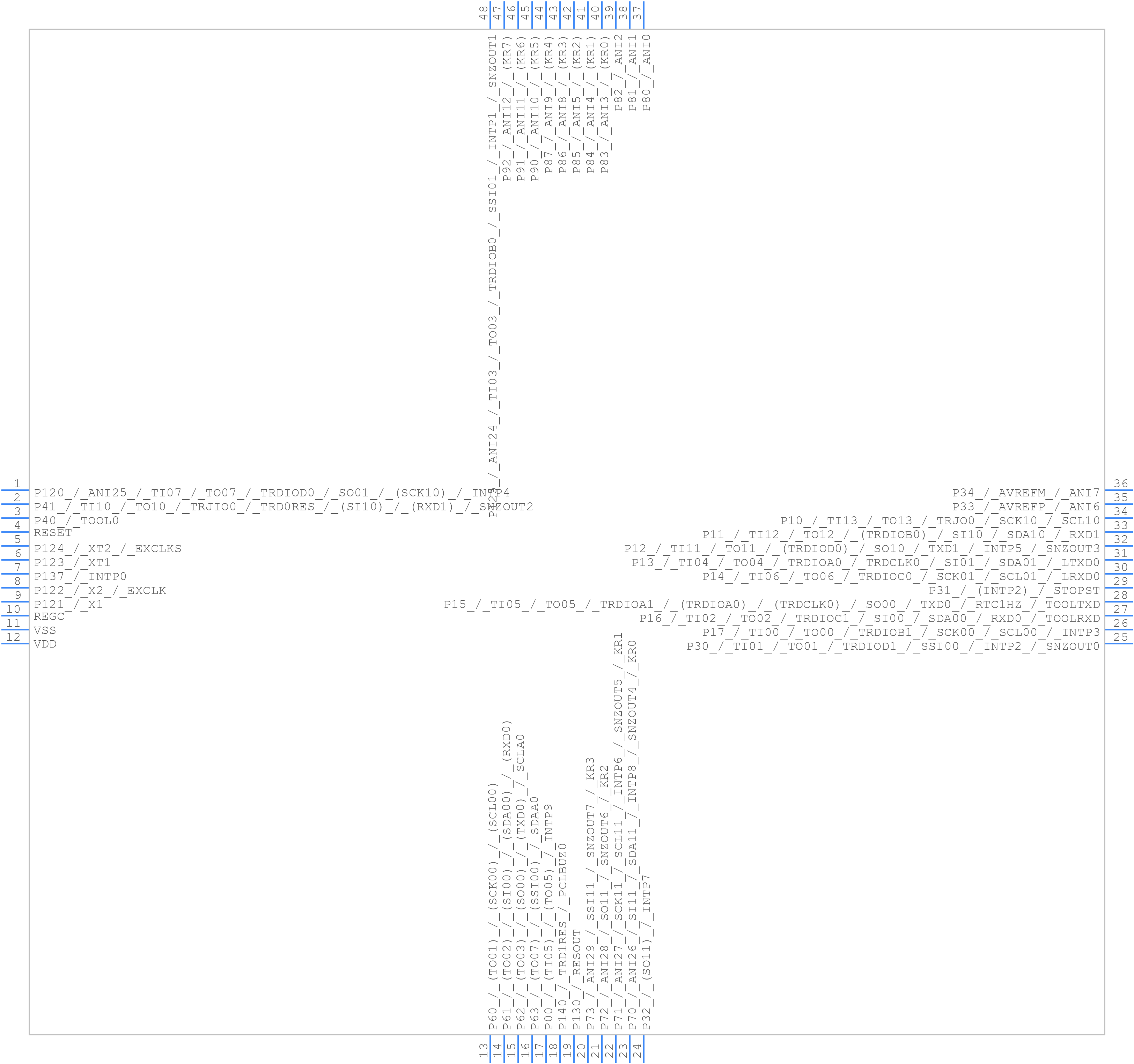

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
R7F123FGG4AFB-C#BA0 - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - PLQP0048KF-A
click to zoom
3D Models
R7F123FGG4AFB-C#BA0 - Renesas Electronics  - 3D model - Quad Flat Packages - PLQP0048KF-A
click to zoom

R7F123FGG4AFB-C#BA0 Details

  • Manufacturer Part Number:

    R7F123FGG4AFB-C#BA0

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LQFP-48

  • Country Of Origin:

    Japan, Malaysia

  • HTS Code:

    8542.31.00.20

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    8

  • Has ADC:

    YES

  • Bit Size:

    16

  • Boundary Scan:

    NO

  • CPU Family:

    RL78

  • Clock Frequency-Max:

    20 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    NO

  • Format:

    FIXED POINT

  • Integrated Cache:

    NO

  • JESD-30 Code:

    S-PQFP-G48

  • Length:

    7 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of External Interrupts:

    10

  • Number of I/O Lines:

    44

  • Number of Serial I/Os:

    3

  • Number of Terminals:

    48

  • Number of Timers:

    15

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Equivalence Code:

    QFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • RAM (bytes):

    12288

  • ROM (words):

    131072

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.6 mm

  • Speed:

    40 MHz

  • Supply Current-Max:

    17 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

R7F123FGG4AFB-C#BA0 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the R7F123FGG4AFB-C#BA0 is 2.7V to 5.5V, with a typical voltage of 3.3V.
  • The clock settings for the R7F123FGG4AFB-C#BA0 can be configured using the Clock Generator (CG) module. The CG module allows you to select the clock source, set the clock frequency, and configure the clock dividers. Refer to the datasheet and the Renesas Synergy Platform documentation for more information.
  • The maximum frequency of the R7F123FGG4AFB-C#BA0 is 240 MHz.
  • The R7F123FGG4AFB-C#BA0 has a 12-bit Analog-to-Digital Converter (ADC) with up to 24 channels. To use the ADC, you need to configure the ADC module, select the analog input channel, and start the conversion. Refer to the datasheet and the Renesas Synergy Platform documentation for more information on ADC configuration and usage.
  • The TRST (Test Reset) pin on the R7F123FGG4AFB-C#BA0 is used for debugging and testing purposes. It is used to reset the device and put it into a debug mode. When the TRST pin is asserted, the device is reset, and the debug interface is enabled.
