R7F701215EABG - Renesas Electronics

R7F701215EABG Details

• Manufacturer Part Number:

  R7F701215EABG

• Brand Name:

  Renesas

• Part Life Cycle Code:

  Active

• Part Package Code:

  BGA252

• Package Description:

  BGA-252

• Pin Count:

  252

• Manufacturer Package Code:

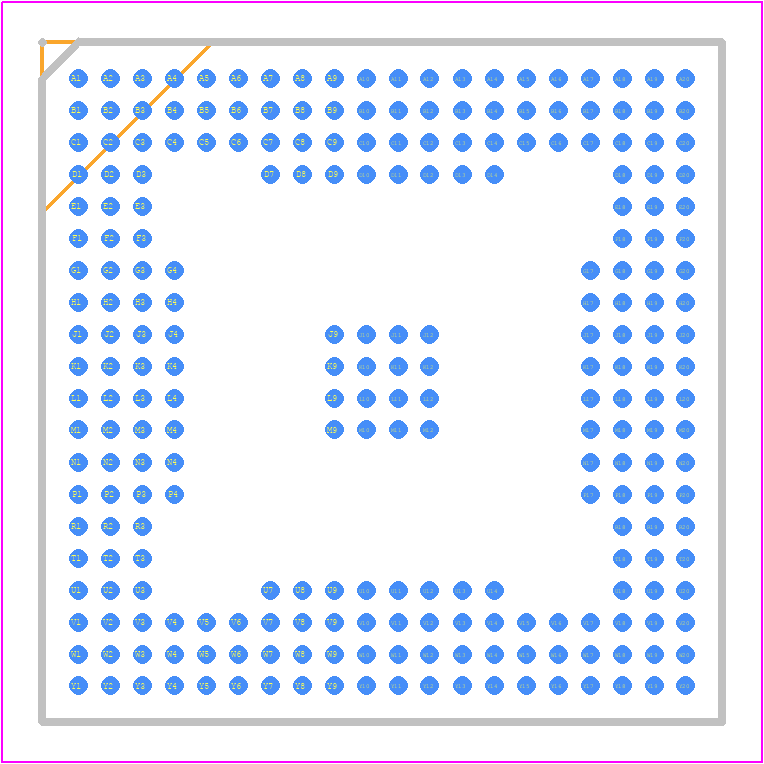

  PRBG0252GB-A

• ECCN Code:

  3A001.a.2.a

• HTS Code:

  8542.31.00.25

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  7.99

• Has ADC:

  YES

• Bit Size:

  32

• Boundary Scan:

  YES

• CPU Family:

  RH850

• Clock Frequency-Max:

  20 MHz

• DAC Channels:

  NO

• DMA Channels:

  YES

• Format:

  FLOATING POINT

• Integrated Cache:

  YES

• JESD-30 Code:

  S-PBGA-B252

• Length:

  17 mm

• Low Power Mode:

  YES

• Number of DMA Channels:

  16

• Number of External Interrupts:

  8

• Number of Serial I/Os:

  4

• Number of Terminals:

  252

• Number of Timers:

  140

• On Chip Data RAM Width:

  8

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  150 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  FBGA

• Package Equivalence Code:

  BGA252,20X20,32

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, FINE PITCH

• RAM (bytes):

  360448

• ROM (words):

  4194304

• ROM Programmability:

  FLASH

• Seated Height-Max:

  2 mm

• Speed:

  240 MHz

• Supply Current-Max:

  500 mA

• Supply Voltage-Max:

  1.35 V

• Supply Voltage-Min:

  1.15 V

• Supply Voltage-Nom:

  1.25 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Form:

  BALL

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  BOTTOM

• Width:

  17 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER, RISC
