R7F701411EABG - Renesas Electronics

Description: The RH850/D1M microcontroller has up to 5 MB embedded flash, 3.5 MB embedded RAM and dedicated features for instrument clusters with middle or high level 2D drawing. Therefore it integrates stepping motor controller/driver, sound generator, a 2D GPU, Sprite Engine, JPEG Unit, HUD Warping Engine and the Video RAM with RAM Wrapper. Furthermore it supports an external memory interface up to DDR2.

Download R7F701411EABG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

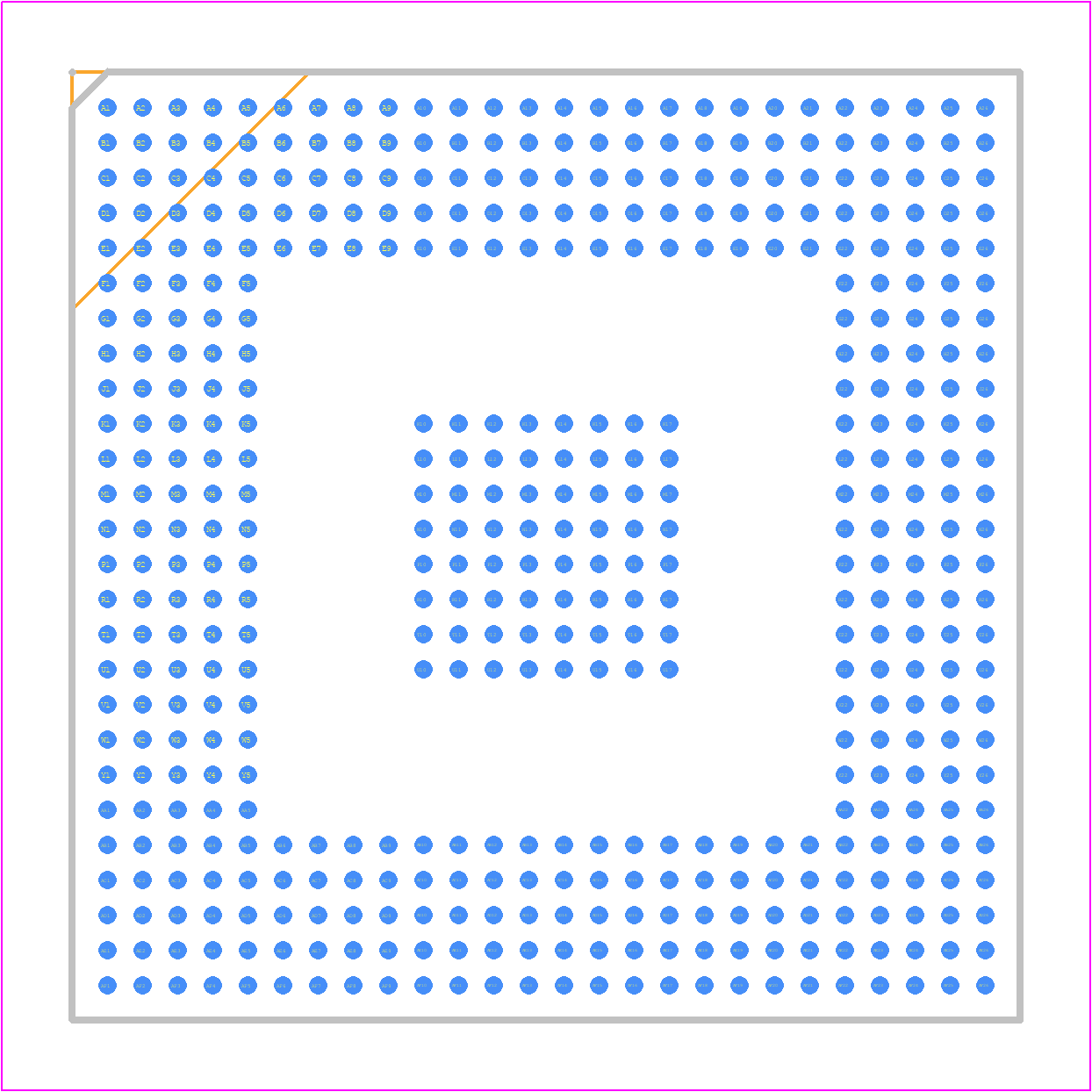

R7F701411EABG - Renesas Electronics PCB footprint - BGA - BGA - PRBG0484FF-A
click to zoom

R7F701411EABG Details

  • Manufacturer Part Number:

    R7F701411EABG

  • Brand Name:

    Renesas

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA484

  • Package Description:

    BGA-484

  • Pin Count:

    484

  • Manufacturer Package Code:

    PRBG0484FF-A

  • ECCN Code:

    3A001.a.2.a

  • HTS Code:

    8542.31.00.25

  • Date Of Intro:

    2020-10-07

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    7.97

  • Has ADC:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    NO

  • CPU Family:

    RH850

  • Clock Frequency-Max:

    8 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • Format:

    FLOATING POINT

  • Integrated Cache:

    YES

  • JESD-30 Code:

    R-PBGA-B484

  • Low Power Mode:

    YES

  • Number of DMA Channels:

    16

  • Number of External Interrupts:

    11

  • Number of I/O Lines:

    199

  • Number of Terminals:

    484

  • Number of Timers:

    2

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA484(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY

  • RAM (bytes):

    524288

  • RAM (words):

    524288

  • ROM (words):

    3932160

  • ROM Programmability:

    FLASH

  • Speed:

    240 MHz

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3.3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Position:

    BOTTOM

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

R7F701411EABG Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the R7F701411EABG is 2.7V to 3.6V, with a typical voltage of 3.3V.
  • The clock settings for the R7F701411EABG can be configured using the Clock Generator (CG) module. The CG module allows you to select the clock source, set the clock frequency, and configure the clock distribution. Refer to the datasheet and the Renesas Electronics Corporation's application notes for more information.
  • The maximum frequency of the R7F701411EABG is 240 MHz.
  • Yes, the R7F701411EABG has 512 KB of built-in flash memory.
  • The R7F701411EABG has several low-power modes, including Sleep, Stop, and Hibernate modes. These modes can be implemented using the Power Management (PM) module. Refer to the datasheet and the Renesas Electronics Corporation's application notes for more information.
