R7F702301BFABG-C - Renesas Electronics

Description: The RH850/U2A MCU is the first member of Renesas’ cross-domain MCUs, a new generation of automotive-control devices, designed to address the growing need to integrate multiple applications into a single chip to realize a unified electronic control units (ECUs) for the evolving electrical-electronic architecture (E/E architecture). Based on 28 nanometer (nm) process technology, the 32-bit RH850/U2A MCU builds on key functions from Renesas’ RH850/Px Series for chassis control and RH850/Fx Series for body cont

Download R7F702301BFABG-C Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

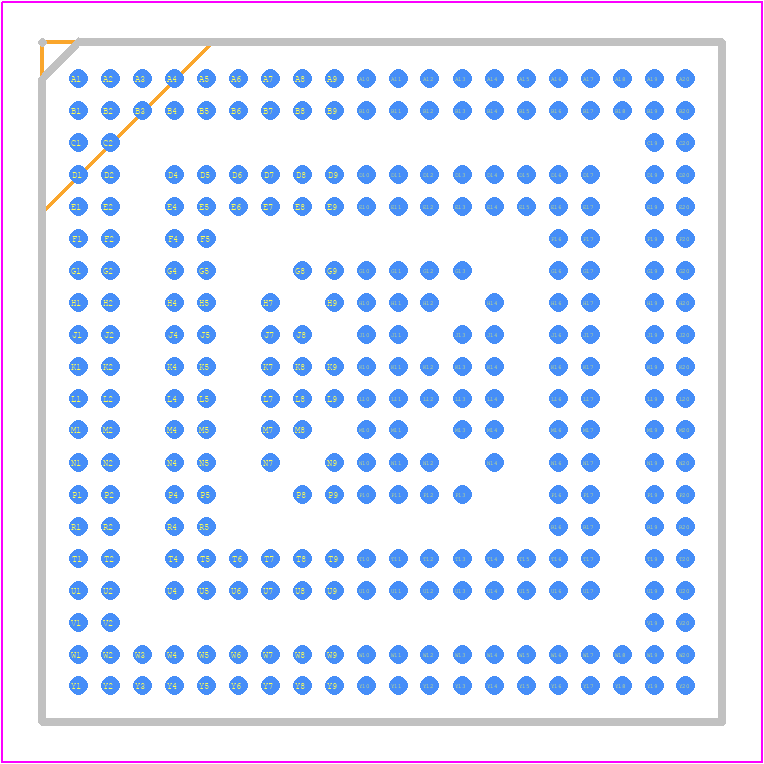

R7F702301BFABG-C - Renesas Electronics PCB footprint - BGA - BGA - R7F702301BFABG-C
click to zoom
3D Models
R7F702301BFABG-C - Renesas Electronics  - 3D model - BGA - R7F702301BFABG-C
click to zoom

R7F702301BFABG-C Details

  • Manufacturer Part Number:

    R7F702301BFABG-C

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    3A991.a.2

  • HTS Code:

    8542.31.00.25

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    8

  • Has ADC:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • CPU Family:

    RH850

  • Clock Frequency-Max:

    40 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • Format:

    FLOATING POINT

  • Integrated Cache:

    YES

  • JESD-30 Code:

    S-PBGA-B292

  • Length:

    17 mm

  • Low Power Mode:

    YES

  • Number of DMA Channels:

    32

  • Number of External Interrupts:

    38

  • Number of I/O Lines:

    165

  • Number of Serial I/Os:

    12

  • Number of Terminals:

    292

  • Number of Timers:

    27

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    160 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FBGA

  • Package Equivalence Code:

    BGA292,20X20,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, FINE PITCH

  • RAM (bytes):

    1835008

  • ROM (words):

    8388608

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.9 mm

  • Speed:

    400 MHz

  • Supply Current-Max:

    45 mA

  • Supply Voltage-Max:

    1.155 V

  • Supply Voltage-Min:

    1.025 V

  • Supply Voltage-Nom:

    1.09 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    17 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC
