R7FA2E1A92DFM#HA0 - Renesas Electronics

Description: The RA2E1 group is the RA Family’s entry-level single-chip microcontroller based on the 48MHz Arm® Cortex®-M23 core and up to 128KB code flash and 16KB SRAM memory. The optimized processing and Renesas’ low power process technology make it the industry's most energy-efficient ultra-low power MCU. The RA2E1 group supports a wide operating voltage range of 1.6V to 5.5V and a large selection of packages such as LQFP, QFN, LGA, BGA, and WLCSP. The RA2E1 provides pin and peripheral compatibility with the RA2L1 g

Download R7FA2E1A92DFM#HA0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
R7FA2E1A92DFM#HA0 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

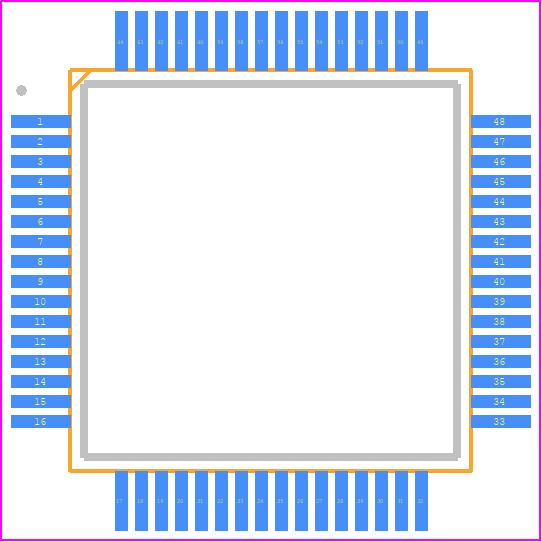

R7FA2E1A92DFM#HA0 - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - PLQP0064KB-C
click to zoom
3D Models
R7FA2E1A92DFM#HA0 - Renesas Electronics - 3D model - Quad Flat Packages - PLQP0064KB-C
click to zoom

R7FA2E1A92DFM#HA0 Details

  • Manufacturer Part Number:

    R7FA2E1A92DFM#HA0

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    11

  • Moisture Sensitivity Level:

    3

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

R7FA2E1A92DFM#HA0 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the R7FA2E1A92DFM#HA0 is -40°C to +85°C.
  • The clock settings for the R7FA2E1A92DFM#HA0 can be configured using the Clock Control Register (CCR) and the System Clock Control Register (SCCR). Refer to the datasheet and the Renesas Synergy Platform documentation for detailed instructions.
  • The maximum frequency of the R7FA2E1A92DFM#HA0's CPU is 240 MHz.
  • The R7FA2E1A92DFM#HA0 supports secure boot through the use of the Trusted Root Module (TRM) and the Secure Boot Loader (SBL). Refer to the Renesas Synergy Platform documentation and the Secure Boot Application Note for detailed instructions.
  • The R7FA2E1A92DFM#HA0 has 1 MB of flash memory and 384 KB of SRAM.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

R7FA2E1A92DFM#HA0 Overview

Use the download button to access the R7FA2E1A92DFM#HA0 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like R7FA2, or try a keyword search, such as Microcontrollers
