R7FA2L1AB2DFL#HA0 - Renesas Electronics

Description: The RA2L1 group is based on the Arm® Cortex®-M23 core, the most energy-efficient CPU among Arm Cortex-M today. The optimized processing and Renesas’ low power process technology makes it the industry's most energy-efficient ultra-low power microcontroller. The RA2L1 group supports a wide operating voltage range of 1.6V to 5.5V, and a maximum CPU clock frequency of 48MHz, lower active mode current and standby mode current. The RA2L1 group also features an enhanced Capacitive Touch Sensing Unit (CTSU2), a set

Download R7FA2L1AB2DFL#HA0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

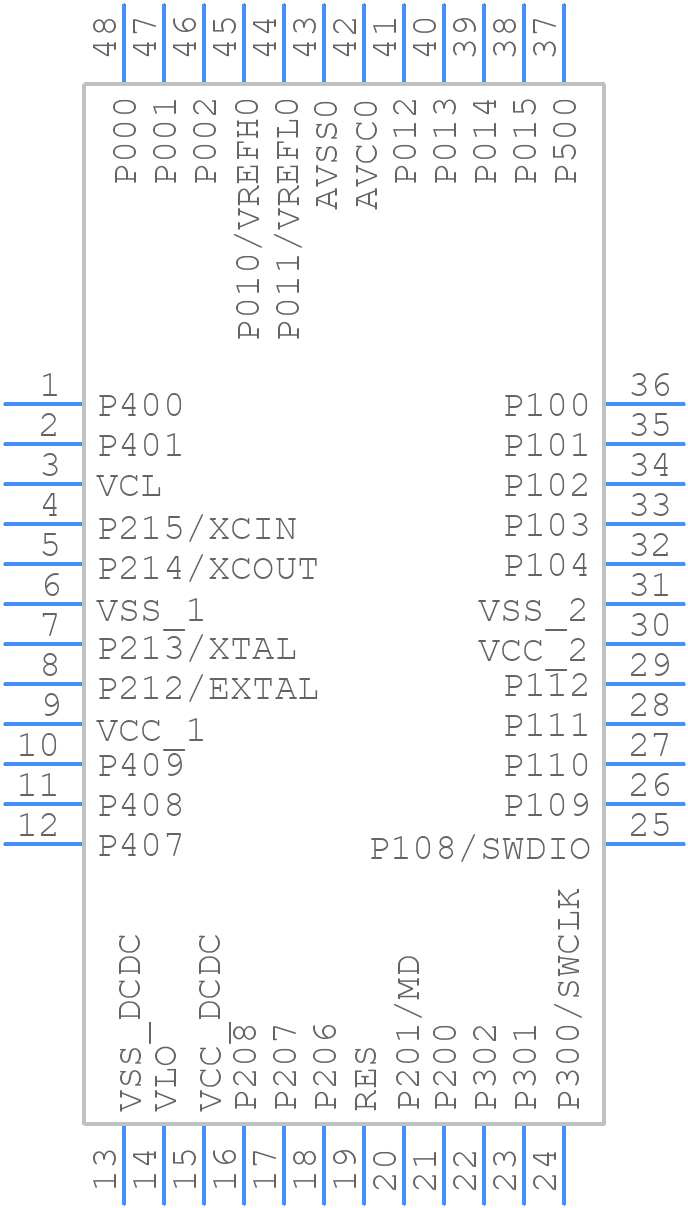

R7FA2L1AB2DFL#HA0 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
R7FA2L1AB2DFL#HA0 - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - PLQP0048KB-B
click to zoom
3D Models
R7FA2L1AB2DFL#HA0 - Renesas Electronics - 3D model - Quad Flat Packages - PLQP0048KB-B
click to zoom

R7FA2L1AB2DFL#HA0 Details

  • Manufacturer Part Number:

    R7FA2L1AB2DFL#HA0

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    12

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

R7FA2L1AB2DFL#HA0 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the R7FA2L1AB2DFL#HA0 is -40°C to +85°C.
  • The clock settings for the R7FA2L1AB2DFL#HA0 can be configured using the Clock Control Register (CCR) and the System Clock Control Register (SCCR). Refer to the datasheet and the Renesas Synergy Platform documentation for detailed instructions.
  • The maximum frequency for the R7FA2L1AB2DFL#HA0's CPU is 240 MHz, and the maximum frequency for the peripherals varies depending on the specific peripheral, but it is typically in the range of 48 MHz to 120 MHz.
  • The R7FA2L1AB2DFL#HA0 supports secure boot and firmware updates through the use of the Trusted Firmware-M (TF-M) and the Renesas Synergy Secure Firmware Update (SFU) tool. Refer to the Renesas documentation and the TF-M documentation for detailed instructions.
  • The power consumption characteristics of the R7FA2L1AB2DFL#HA0 vary depending on the operating mode and frequency. In active mode, the typical current consumption is around 150 mA at 240 MHz, and in sleep mode, it is around 10 μA. Refer to the datasheet for detailed power consumption characteristics.
