R7FA2T1074CNH#BA0 footprint, schematic symbol and 3D model by Renesas Electronics

R7FA2T1074CNH#BA0 - Renesas Electronics

Description: The RA2T1 group microcontroller is optimized for single motor control applications, based on a 64MHz Arm® Cortex®-M23 core. Featuring PWM timer and advanced analog, including 3 sample-and-hold circuits integrated in the A/D converter, it is suitable for efficient low-end motor control applications such as power tools, fans, and home appliances. Supporting a wide operating range of 1.6V to 5.5V and offered in a compact 24-pin QFN package, the RA2T1 meets the needs of cost-sensitive and space-constrained desi

Download R7FA2T1074CNH#BA0 Model

Schematic
symbols

PCB
footprints

3D
models

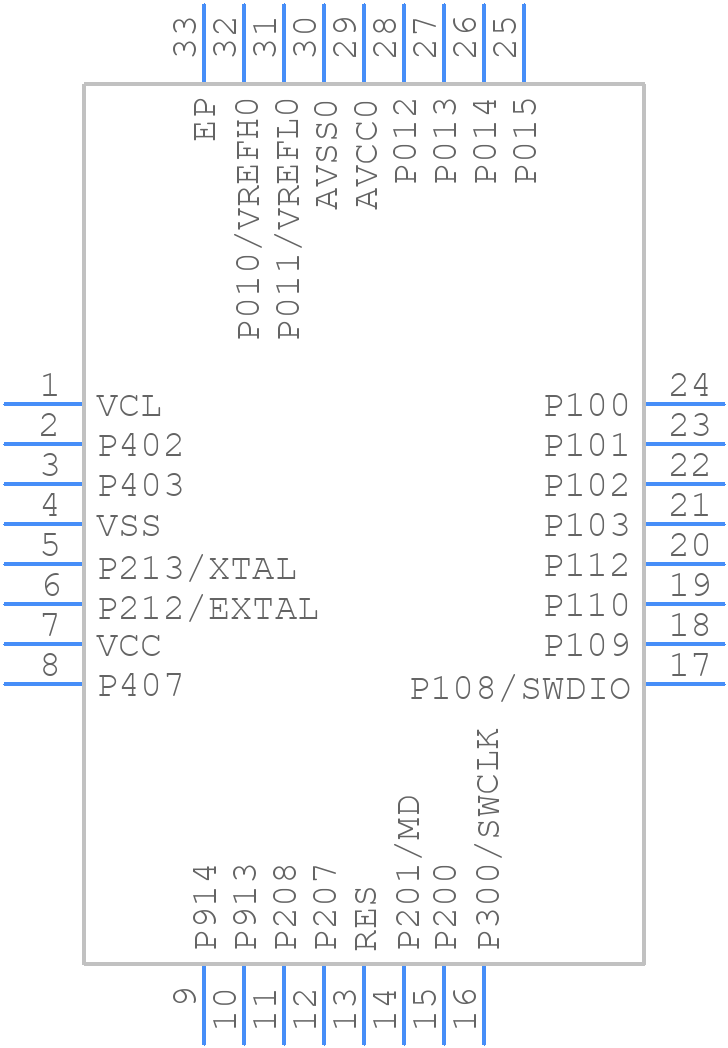

Symbol

click to zoom

PCB Footprints

R7FA2T1074CNH#BA0 - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - PWQN0032KE-A

click to zoom

3D Models

R7FA2T1074CNH#BA0 - Renesas Electronics - 3D model - Quad Flat No-Lead - PWQN0032KE-A

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for R7FA2T1074CNH#BA0
Part Number R7FA2T1074CNH#BA0
Manufacturer Renesas Electronics
Pin Count 33
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - PWQN0032KE-A
Released Date Jul 18, 2025
Last Modified Date Jul 18, 2025 1:29 PM UTC
Pinout / Pin List Click Here (Member Only)

R7FA2T1074CNH#BA0 Details

Manufacturer Part Number:
R7FA2T1074CNH#BA0
Manufacturer:
Renesas Electronics Corporation

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

R7FA2T1074CNH#BA0 Overview

Use the download button to access the R7FA2T1074CNH#BA0 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like R7FA2, or try a keyword search, such as Microcontrollers
