R7FA6M1AD3CNB#AC0 - Renesas Electronics

Description: The Renesas RA6M1 microcontroller is the entry point to the Renesas RA6 product series for applications that require a high-performance Arm® Cortex®-M4 core at a very attractive price point. The RA6M1 is built on a highly efficient 40nm process and is supported by an open and flexible ecosystem concept—the Flexible Software Package (FSP), built on FreeRTOS—and is expandable to use other RTOSes and middleware. The RA6M1 is suitable for IoT applications requiring security, large embedded RAM and low power con

Download R7FA6M1AD3CNB#AC0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
R7FA6M1AD3CNB#AC0 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

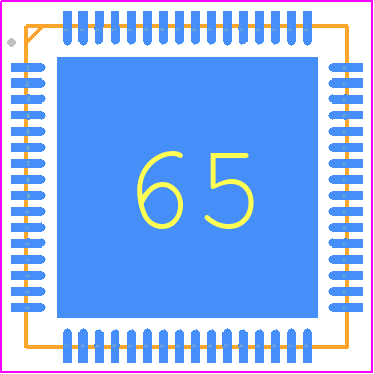

R7FA6M1AD3CNB#AC0 - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - PWQN0064LA-A
click to zoom
3D Models
R7FA6M1AD3CNB#AC0 - Renesas Electronics - 3D model - Quad Flat No-Lead - PWQN0064LA-A
click to zoom

R7FA6M1AD3CNB#AC0 Details

  • Manufacturer Part Number:

    R7FA6M1AD3CNB#AC0

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Pin Count:

    64

  • Manufacturer Package Code:

    PWQN0064LA

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    24 Weeks

  • Date Of Intro:

    2019-09-16

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • JESD-609 Code:

    e4

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

R7FA6M1AD3CNB#AC0 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the R7FA6M1AD3CNB#AC0 is -40°C to +85°C.
  • The clock settings for the R7FA6M1AD3CNB#AC0 can be configured using the System Clock Control Register (SCKCR) and the Clock Control Register (CKCR). Refer to the datasheet for specific register settings and configuration options.
  • The maximum frequency for the R7FA6M1AD3CNB#AC0's CPU is 240 MHz, and the maximum frequency for the peripherals is 120 MHz.
  • The R7FA6M1AD3CNB#AC0 has several low-power modes, including Sleep, Stop, and Low-Power Run modes. These modes can be implemented using the Power Management Controller (PMC) and the System Control Register (SCR). Refer to the datasheet for specific register settings and configuration options.
  • The R7FA6M1AD3CNB#AC0 has 1 MB of flash memory and 256 KB of SRAM.
