R7FA6M4AF2CBM#BC0 - Renesas Electronics

Description: The Renesas RA6M4 group of microcontrollers (MCUs) uses the high-performance Arm® Cortex®-M33 core with TrustZone. In concert with the Secure Crypto Engine it offers Secure Element functionality. The integrated Ethernet MAC with individual DMA ensures high data throughput. The RA6M4 is built on a highly efficient 40nm process and is supported by an open and flexible ecosystem concept—the Flexible Software Package (FSP), built on FreeRTOS—and is expandable to use other RTOSes and middleware. The RA6M4 is sui

Download R7FA6M4AF2CBM#BC0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
R7FA6M4AF2CBM#BC0 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

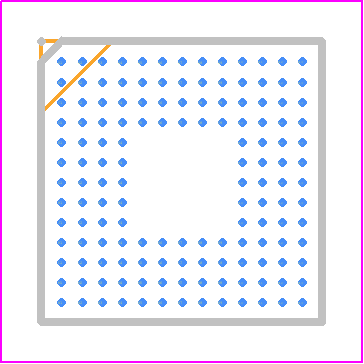

R7FA6M4AF2CBM#BC0 - Renesas Electronics PCB footprint - BGA - BGA - PLBG0144KB-A
click to zoom
3D Models
R7FA6M4AF2CBM#BC0 - Renesas Electronics - 3D model - BGA - PLBG0144KB-A
click to zoom

R7FA6M4AF2CBM#BC0 Details

  • Manufacturer Part Number:

    R7FA6M4AF2CBM#BC0

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    10

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC
