R7FS7G27G2A01CBG#AC0 - Renesas Electronics

Description: Designed for high-compute, performance-intensive, networked control applications requiring full memory redundancy, the S7G2 MCU Group has 3 to 4 MB of flash memory and 640 KB of SRAM. Rich in features, it includes a Graphics LCD Controller, 2D Drawing Engine, Capacitive Touch Sensing Unit, advanced analog, Ethernet MAC Controller with IEEE 1588 PTP, USB 2.0 High-Speed and Full-Speed, SDHI, Quad SPI, and safety and security features, to handle a wide range of complexity.Synergy Software Package (SSP)Commerci

Download R7FS7G27G2A01CBG#AC0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
R7FS7G27G2A01CBG#AC0 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

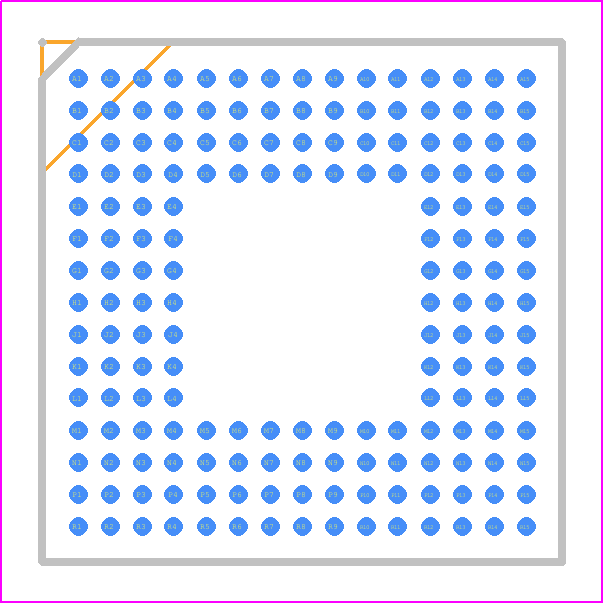

R7FS7G27G2A01CBG#AC0 - Renesas Electronics PCB footprint - BGA - BGA - PLBG0176GE-A
click to zoom
3D Models
R7FS7G27G2A01CBG#AC0 - Renesas Electronics - 3D model - BGA - PLBG0176GE-A
click to zoom

R7FS7G27G2A01CBG#AC0 Details

  • Manufacturer Part Number:

    R7FS7G27G2A01CBG#AC0

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Pin Count:

    176

  • Manufacturer Package Code:

    PLBG0176GE

  • Country Of Origin:

    Japan

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    10

  • Moisture Sensitivity Level:

    3

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

R7FS7G27G2A01CBG#AC0 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the R7FS7G27G2A01CBG#AC0 is -40°C to 85°C.
  • The clock settings for the R7FS7G27G2A01CBG#AC0 can be configured using the System Controller (SYSC) registers. Refer to the datasheet and the Renesas Synergy Software Package (SSP) documentation for more information.
  • The maximum frequency of the CPU is 240 MHz, and the maximum frequency of the peripherals varies depending on the peripheral, but it is typically in the range of 48 MHz to 120 MHz.
  • The R7FS7G27G2A01CBG#AC0 has a built-in Trusted Secure IP (TSIP) module that provides secure boot and firmware update capabilities. Refer to the Renesas Synergy Software Package (SSP) documentation and the TSIP user manual for more information.
  • The power consumption of the R7FS7G27G2A01CBG#AC0 varies depending on the operating mode and frequency. Refer to the datasheet for detailed power consumption characteristics, but typical values are around 50 mA/MHz for the CPU and 10 mA/MHz for the peripherals.
