R7S910028CBG#AC0 - Renesas Electronics

R7S910028CBG#AC0 Details

• Manufacturer Part Number:

  R7S910028CBG#AC0

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  End Of Life

• Part Package Code:

  FBGA

• Package Description:

  FBGA-320

• Pin Count:

  320

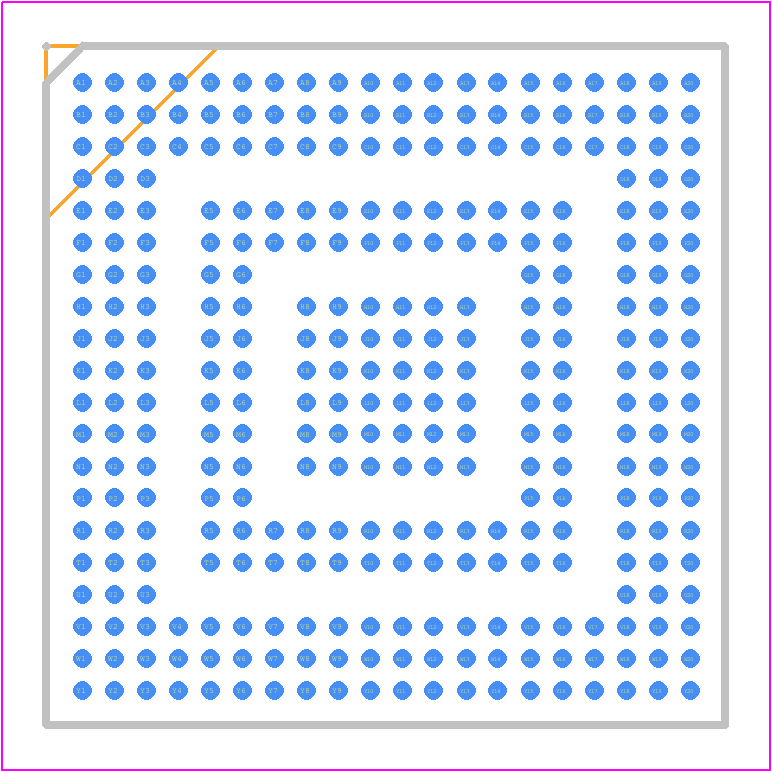

• Manufacturer Package Code:

  PRBG0320GA

• Country Of Origin:

  Japan

• ECCN Code:

  3A991.A.2

• HTS Code:

  8542.31.00.50

• Factory Lead Time:

  12 Weeks

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Has ADC:

  YES

• Bit Size:

  32

• Boundary Scan:

  YES

• CPU Family:

  CORTEX-R4

• DAC Channels:

  NO

• DMA Channels:

  YES

• External Data Bus Width:

  32

• Format:

  FLOATING POINT

• Integrated Cache:

  YES

• JESD-30 Code:

  S-PBGA-B320

• Length:

  17 mm

• Low Power Mode:

  YES

• Moisture Sensitivity Level:

  3

• Number of DMA Channels:

  32

• Number of External Interrupts:

  20

• Number of Timers:

  33

• On Chip Data RAM Width:

  8

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  FBGA

• Package Equivalence Code:

  BGA320,20X20,32

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, FINE PITCH

• ROM (words):

  0

• ROM Programmability:

  ROM LESS

• Seated Height-Max:

  1.75 mm

• Speed:

  600 MHz

• Supply Current-Max:

  740 mA

• Supply Voltage-Max:

  1.26 V

• Supply Voltage-Min:

  1.14 V

• Supply Voltage-Nom:

  1.2 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Form:

  BALL

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  BOTTOM

• Width:

  17 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER, RISC
