R8001CND3FRATL - ROHM Semiconductor

Description: 800V 1A TO-252, Automotive Power MOSFET with integrated ESD protection diode

Download R8001CND3FRATL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
R8001CND3FRATL - ROHM Semiconductor - PCB symbol
click to zoom

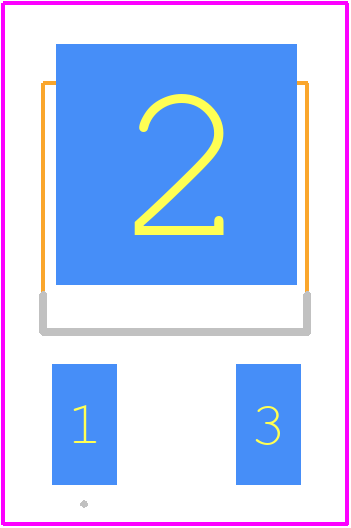

PCB Footprints
R8001CND3FRATL - ROHM Semiconductor PCB footprint - Other - Other - TO-252 (DPAK)_Master
click to zoom
3D Models
R8001CND3FRATL - ROHM Semiconductor - 3D model - Other - TO-252 (DPAK)_Master
click to zoom

R8001CND3FRATL Details

  • Manufacturer Part Number:

    R8001CND3FRATL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DPAK-3/2

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2019-12-06

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    6

  • Avalanche Energy Rating (Eas):

    0.066 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    800 V

  • Drain Current-Max (ID):

    1 A

  • Drain-source On Resistance-Max:

    8.7 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    9 pF

  • JEDEC-95 Code:

    TO-252

  • JESD-30 Code:

    R-PSSO-G2

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    2

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR, EMBOSSED, 13 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    36 W

  • Pulsed Drain Current-Max (IDM):

    4 A

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

R8001CND3FRATL Frequently Asked Questions (FAQs)

  • ROHM recommends a PCB layout with a thermal pad connected to a large copper area on the bottom layer, and multiple vias to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • To ensure stable output voltage regulation, it's essential to follow the recommended input and output capacitor values, and to place them close to the IC. Additionally, a minimum input voltage of 2.5V is recommended, and the output voltage should not be adjusted to a value lower than 1.5V.
  • The maximum allowed input voltage ripple for the R8001CND3FRATL is 1Vp-p. Exceeding this value may affect the LDO's performance and stability.
  • While the R8001CND3FRATL has a maximum operating temperature of 125°C, it's essential to consider the derating of the output current and power dissipation at high temperatures. ROHM recommends consulting the thermal derating curve in the datasheet to ensure safe operation.
  • The R8001CND3FRATL has a built-in overcurrent protection (OCP) and short-circuit protection (SCP) circuitry. However, it's still recommended to add external protection components, such as a fuse or a PTC thermistor, to prevent damage from excessive current or voltage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

R8001CND3FRATL Overview

Use the download button to access the R8001CND3FRATL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like R8001, or try a keyword search, such as Power Field-Effect Transistors
