R8A77211C133BGV - Renesas Electronics

R8A77211C133BGV Details

• Manufacturer Part Number:

  R8A77211C133BGV

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Part Life Cycle Code:

  Obsolete

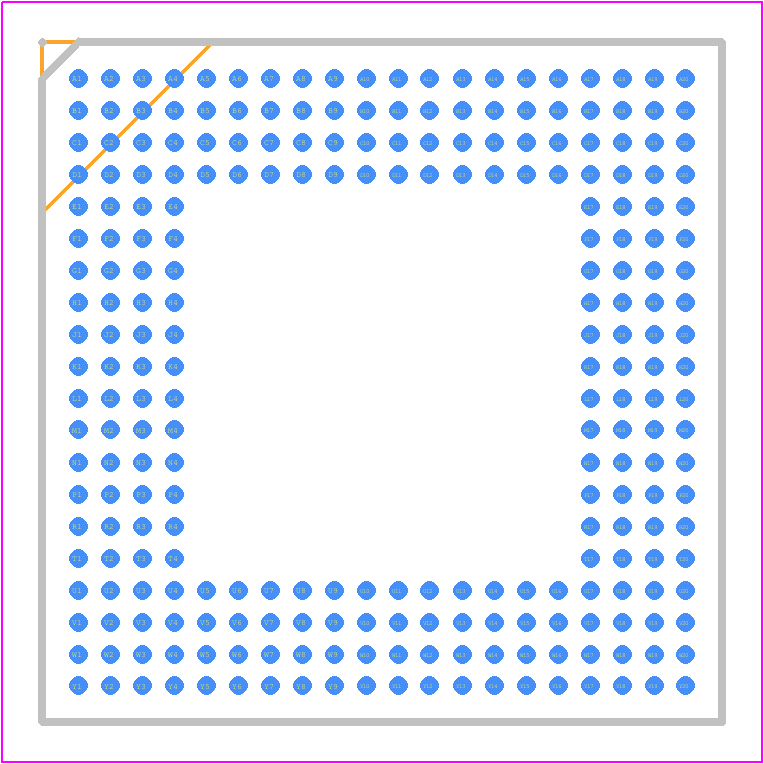

• Part Package Code:

  LFBGA

• Pin Count:

  256

• Manufacturer Package Code:

  PLBG0256GA

• ECCN Code:

  3A991.a.2

• HTS Code:

  8542.31.00.25

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Has ADC:

  YES

• Address Bus Width:

  26

• Bit Size:

  32

• Clock Frequency-Max:

  48 MHz

• DMA Channels:

  YES

• External Data Bus Width:

  32

• JESD-30 Code:

  S-PBGA-B256

• Length:

  17 mm

• Number of I/O Lines:

  117

• Number of Terminals:

  256

• Operating Temperature-Max:

  70 °C

• Operating Temperature-Min:

  -20 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  FBGA

• Package Equivalence Code:

  BGA256,20X20,32

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, LOW PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Qualification Status:

  Not Qualified

• RAM (bytes):

  16384

• Speed:

  133.34 MHz

• Supply Current-Max:

  300 mA

• Supply Voltage-Max:

  1.6 V

• Supply Voltage-Min:

  1.4 V

• Supply Voltage-Nom:

  1.5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Form:

  BALL

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Width:

  17 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER, RISC
