RA-T2X-51E footprint, schematic symbol and 3D model by Ohmite

Symbol

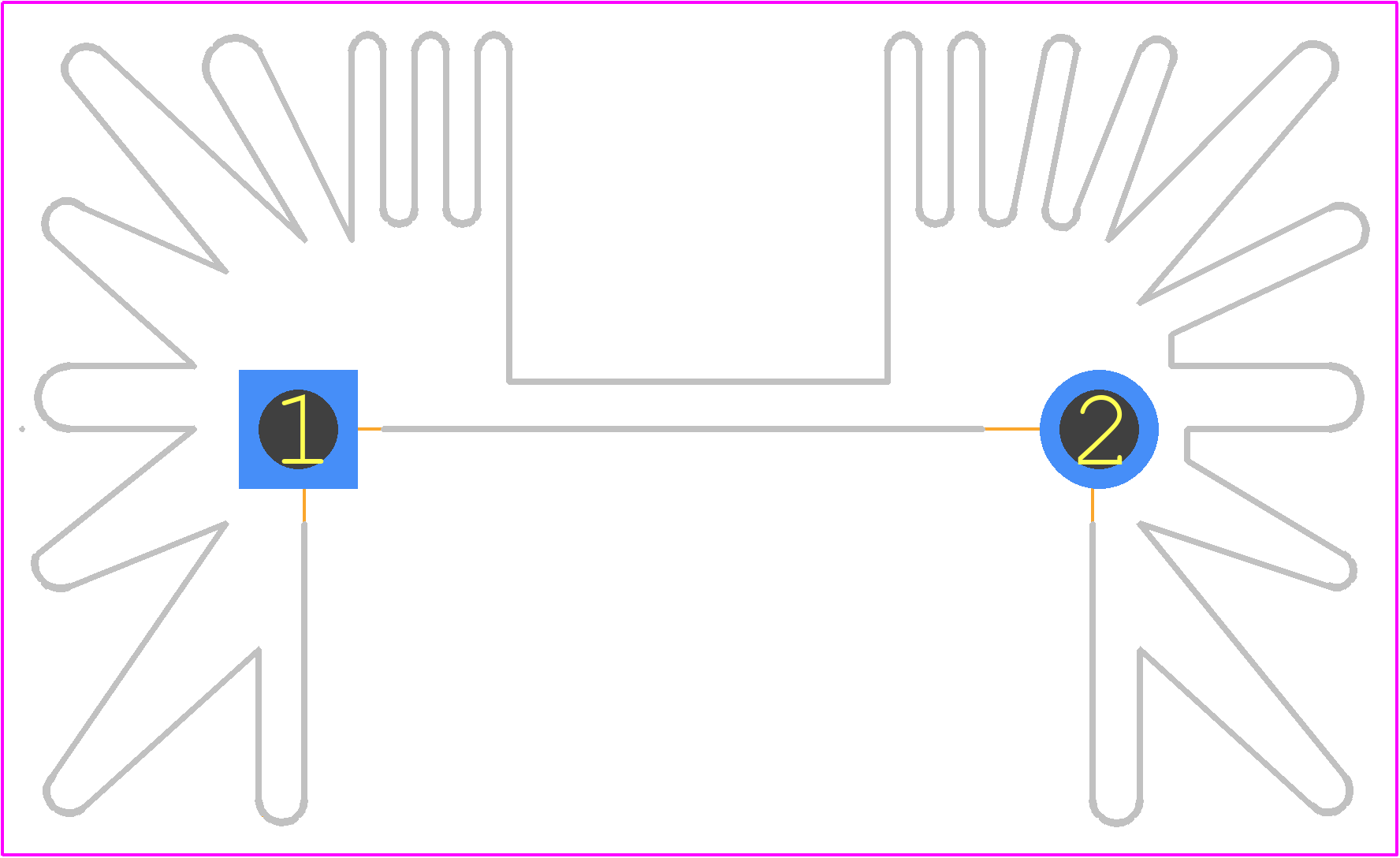

PCB Footprints

3D Models

RA-T2X-51E Details

The thermal resistance of the RA-T2X-51E is not explicitly stated in the datasheet, but according to Ohmite's application notes, it is typically around 10-15°C/W.
While the RA-T2X-51E is a ruggedized resistor, it is still susceptible to vibration-induced failures. Ohmite recommends using additional mechanical support or potting the resistor in a vibration-prone environment.
Yes, the RA-T2X-51E is designed for high-reliability applications, with a failure rate of <1% per 1,000 hours at 70°C. However, it's essential to follow proper derating and application guidelines to ensure optimal performance.
The RA-T2X-51E has a moisture sensitivity level (MSL) of 3, which means it can withstand moderate humidity levels. However, Ohmite recommends using a conformal coating or potting the resistor in extremely humid environments.
Ohmite recommends a soldering profile with a peak temperature of 260°C (500°F) for 10-15 seconds. It's essential to follow a controlled soldering process to prevent thermal shock and ensure reliable connections.

Community Provided

System Verified

Community Approved

Use the download button to access the RA-T2X-51E schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like RA-T2, or try a keyword search, such as Heat Sinks
