RA-T2X-64E footprint, schematic symbol and 3D model by Ohmite

Symbol

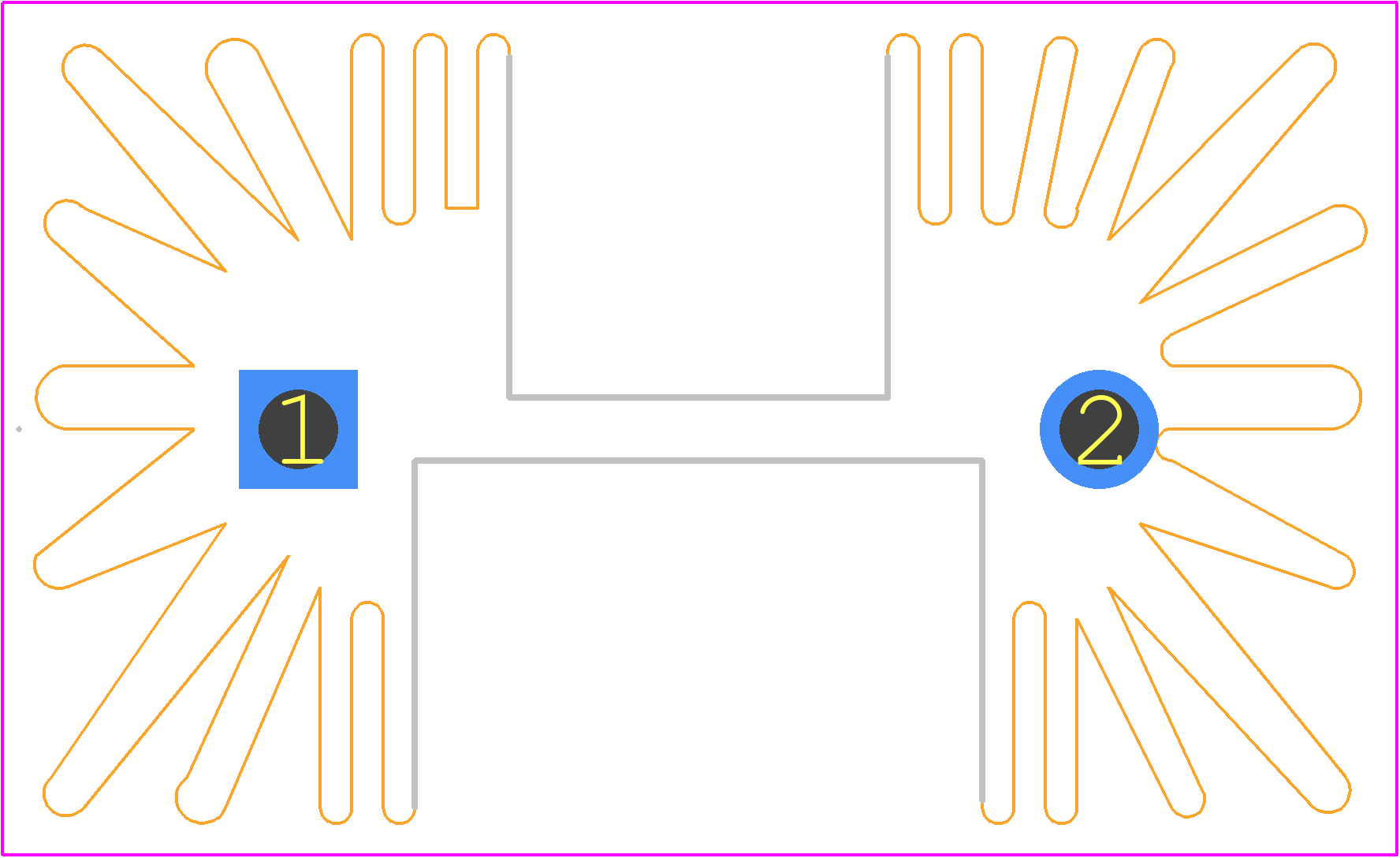

PCB Footprints

3D Models

RA-T2X-64E Details

The thermal resistance of the RA-T2X-64E is typically around 10°C/W, but this can vary depending on the specific application and mounting method.
Yes, the RA-T2X-64E is designed to withstand high-vibration environments. However, it's recommended to follow proper mounting and installation procedures to ensure reliable performance.
Yes, the RA-T2X-64E is compatible with lead-free soldering processes. Ohmite Mfg Co ensures that their products meet the requirements of the RoHS directive.
The recommended torque specification for the RA-T2X-64E is 10-12 in-lbs (1.1-1.4 Nm). However, it's recommended to consult the datasheet or contact Ohmite Mfg Co for specific torque recommendations for your application.
The RA-T2X-64E is designed to operate in a variety of environments, including humid or high-moisture conditions. However, it's recommended to follow proper sealing and protection methods to ensure reliable performance.

Community Provided

System Verified

Community Approved

Use the download button to access the RA-T2X-64E schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like RA-T2, or try a keyword search, such as Heat Sinks
