Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for RA1622IWP
- Part Number RA1622IWP
- Manufacturer CIT Relay & Switch
- Pin Count 3
- Part Category Switch
- Package Category Other

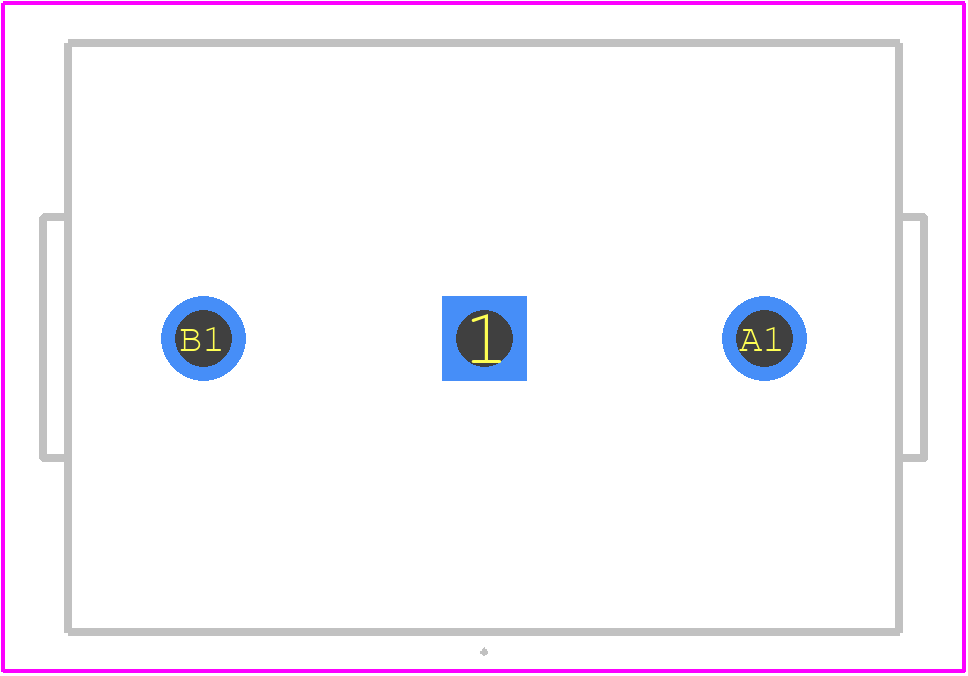

- Footprint Name Other - 20.75mm x 14.7mm x 16.1mm
- Released Date Sep 5, 2024
- Last Modified Date Oct 1, 2024 10:23 AM UTC
- Pinout / Pin List Click Here (Member Only)
RA1622IWP Details
-
Manufacturer Part Number:
RA1622IWP
-
Manufacturer:
CIT Relay & Switch
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
RA1622IWP Overview
Use the download button to access the RA1622IWP schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like RA162,
or try a keyword search, such as Array/Network Resistors
